[TR] Hoses to carbon canister for Triumphs similar to that used on a TR6

[Sujit Roy]

Hello Dave,
Just for clarification.
I have a canister with 3 ports.
1 goes to the tank. ( understood - put an air filter on this line)
1 comes from the valve cover breather and from each carb. Block this off at
the canister. (Since I'm assuming this introduces some air from the bottom
of the canister, do I need to adjust fuel air ratio?

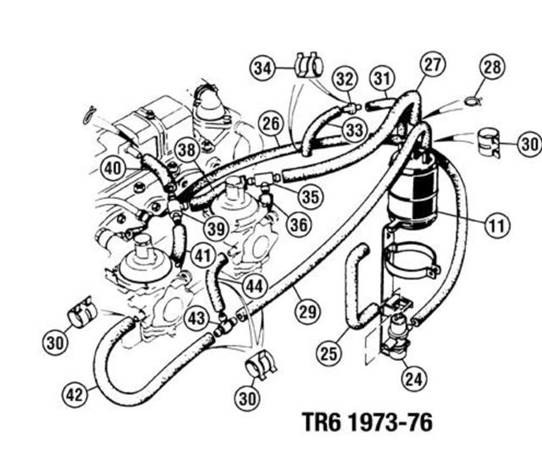

1 connects to the carbs (above in photo (42 and 44) . Does this vent to
air?
What have I gained by removing all this? As I said I have the parts readily
available.

For other folks who have replied. I will take this stuff to my local NAPA
as I need some vacuum hoses as well.
Regards, Sujit


On Wed, Aug 26, 2020 at 10:26 AM dave <dave at ranteer.com> wrote:

> On a TR6 and your diagram – there is a T from the vacuum system.  One end
> goes to the cannister. Just eliminate it.
>
>
>
> the line that comes in from the fuel tank is important in that is where
> air comes from to replace the fuel as it leaves the tank.  I just put a
> filter on it right there in the engine compartment and let it continue to
> supply air to the tank.
>
>
>
> *From:* Sujit Roy <triumphstag at gmail.com>
> *Sent:* Wednesday, August 26, 2020 12:00 PM
> *To:* dave <dave at ranteer.com>
> *Cc:* Triumphs <triumphs at autox.team.net>
> *Subject:* Re: [TR] Hoses to carbon canister for Triumphs similar to that
> used on a TR6
>
>
>
> I am working on Stag No. 2 and need to get it registered in CA. I have all
> the parts, so I  thought I'd put it on.
>
> However, I have Stag no. 1. What improvements can I get by removing the
> canister and how do I plug the holes correctly? I recall the Stag has a
> return from this canister back into the fuel tank. If I plug this line
> wont it cause some sort or vacuum in the tank?
>
>
>
> Sujit
>
>
>
> On Wed, Aug 26, 2020 at 9:50 AM dave <dave at ranteer.com> wrote:
>
> Just a thought – why not remove the charcoal cannister and all the hoses?
> I did that on my TR6 and its an improvement
>
>
>
> *From:* Triumphs <triumphs-bounces at autox.team.net> *On Behalf Of *Sujit
> Roy
> *Sent:* Wednesday, August 26, 2020 11:41 AM
> *To:* DAVID MASSEY <dave1massey at cs.com>
> *Cc:* triumphs at autox.team.net
> *Subject:* Re: [TR] Hoses to carbon canister for Triumphs similar to that
> used on a TR6
>
>
>
> That's the back up plan. They don't look as nice though.
>
> Regards.
>
>
>
> On Wed, Aug 26, 2020 at 9:23 AM DAVID MASSEY <dave1massey at cs.com> wrote:
>
> If you can't find it you can get some barbed right-angle fittings and make
> the sharp turns using those.
>
>
>
> Dave
>
>
>
>
>
> -----Original Message-----
> From: Sujit Roy <triumphstag at gmail.com>
> To: Triumphs <triumphs at autox.team.net>
> Sent: Wed, Aug 26, 2020 11:13 am
> Subject: [TR] Hoses to carbon canister for Triumphs similar to that used
> on a TR6
>
> I need to get some hoses for my Stag. I don't think they are available.
>
> This is from a TR6 and the hoses are similar to hoses 27 and 29.
>
> The canister in the Stag sits quite high under the hood  and I'd like to
> get preformed 90 degree angled hoses. Are the hoses for the TR6 performed?
> If so, then TRF probably has the correct ones. Can someone confirm?
>
>
>
> Regards, Sujit
>
>
>
>
>
>
>
>
>
>
> --
>
> Sujit Roy
> Cupertino, California
>
>
> https://triumphstagblog.wordpress.com/
>
> ** triumphs at autox.team.net **
>
> Donate: http://www.team.net/donate.html
> Archive: http://www.team.net/pipermail/triumphs
> http://www.team.net/archive
>
> Unsubscribe/Manage:
> http://autox.team.net/mailman/options/triumphs/dave1massey@cs.com
>
>
>
>
> --
>
> Sujit Roy
> Cupertino, California
>
>
> https://triumphstagblog.wordpress.com/
>
> ** triumphs at autox.team.net **
>
> Donate: http://www.team.net/donate.html
> Archive: http://www.team.net/pipermail/triumphs
> http://www.team.net/archive
>
> Unsubscribe/Manage:
> http://autox.team.net/mailman/options/triumphs/triumphstag@gmail.com
>
>
>
>
> --
>
> Sujit Roy
> Cupertino, California
>
>
> https://triumphstagblog.wordpress.com/
> ** triumphs at autox.team.net **
>
> Donate: http://www.team.net/donate.html
> Archive: http://www.team.net/pipermail/triumphs
> http://www.team.net/archive
>
> Unsubscribe/Manage:
> http://autox.team.net/mailman/options/triumphs/triumphstag@gmail.com
>


--
Sujit Roy
Cupertino, California

https://triumphstagblog.wordpress.com/
