[TR] Tr3b suspension

[Randy and Valerie DeRuiter]

Erkan

With new springs you typically have to use clamps to position everything it is not a simple bolt in procedure.

I would loosen or completely remove the u-bolts holding the differential to the springs.

I don’t remember the exact steps but I believe I would attach the spring front and rear mounts first, then take a large clamp and bring the spring up to the differential to attach the u-bolts to complete.

Sent from my iPhone

On Jul 4, 2022, at 4:54 PM, Erkan Hassan <erkanhassan at yahoo.com> wrote:


Hi all,

I successfully removed the leaf spring from my 1962 TR3B.
Cleaned things up, replaced fluid in shock absorber.
The new spring had a little more curvature than the old spring (in image).

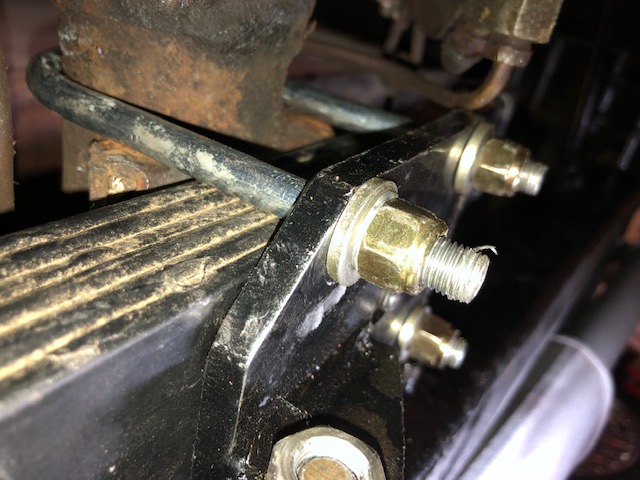

Today went to put the brand new TRF spring into the car. Reattached to shock absorber and new U bolts.
Aligned the fulcrum bolt (although did not insert).

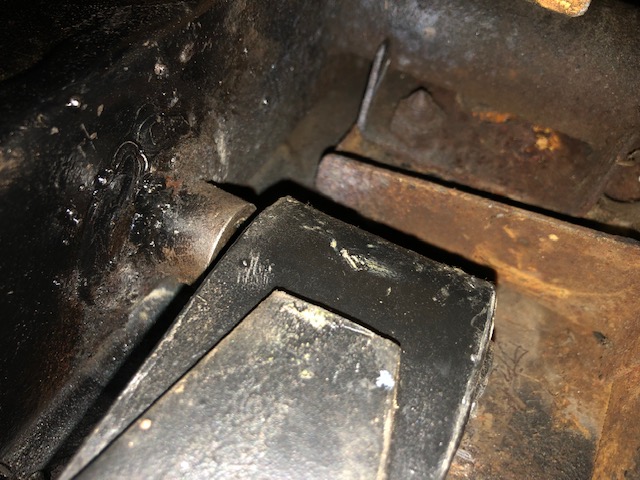

The problem is the rear end of the spring does not align with the shackle eye on the frame…see last image

Help…any ideas…am I doing anything wrong
Thanks
Erkan
[image0.jpeg]
[image1.jpeg]
[image2.jpeg]
[image3.jpeg]
