[TR] Tr3b suspension

[Erkan Hassan]

Hi all,

I successfully removed the leaf spring from my 1962 TR3B.
Cleaned things up, replaced fluid in shock absorber.

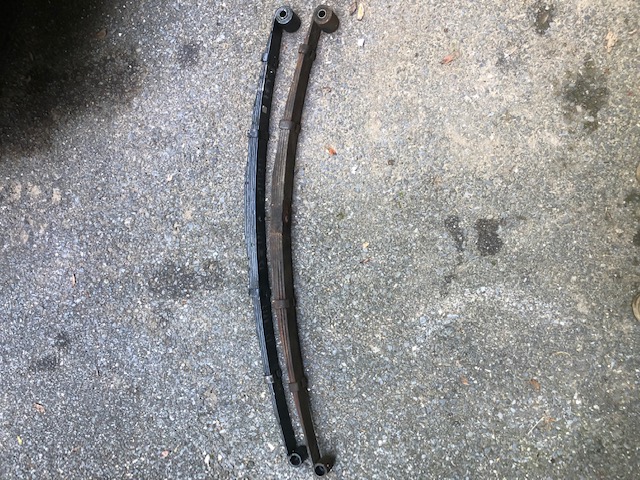

The new spring had a little more curvature than the old spring (in image).

Today went to put the brand new TRF spring into the car. Reattached to shock absorber and new U bolts.
Aligned the fulcrum bolt (although did not insert).

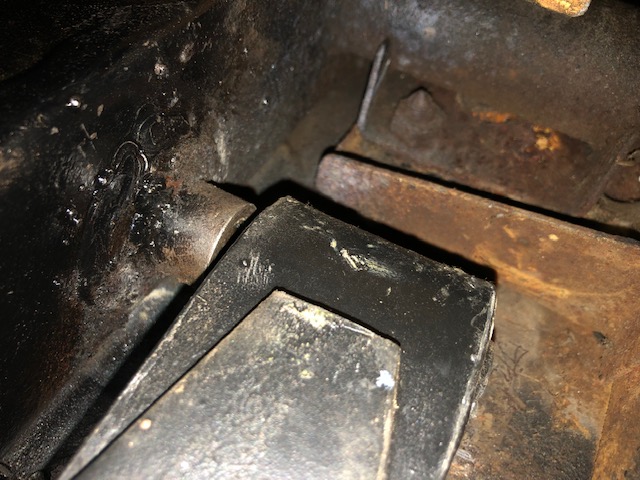

The problem is the rear end of the spring does not align with the shackle eye on the frame…see last image

Help…any ideas…am I doing anything wrong
Thanks
Erkan
