[TR] turns on the right

[Greg]

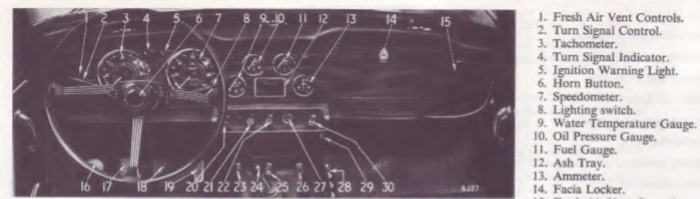

FWIW, on the 4A the OD and turn signal are on the left and the light switch is on the right, although the OD didn’t make it onto the documentation:







From: Triumphs <triumphs-bounces at autox.team.net> on behalf of DAVID MASSEY <dave1massey at cs.com>
Date: Wednesday, June 6, 2018 at 9:18 AM
To: <auprichard at uprichard.net>, <triumphs at autox.team.net>
Subject: Re: [TR] turns on the right



Interesting.  This places the overdrive switch in approximately the same location as the OD switch on the TR3 but it puts the turn signal switch on the opposite side as where it is found on your typical 'meracan car.  That would keep me confused.





Dave Massey





-----Original Message-----
From: Andrew Uprichard <auprichard at uprichard.net>
To: triumphs <triumphs at autox.team.net>
Sent: Tue, Jun 5, 2018 11:27 pm
Subject: [TR] turns on the right

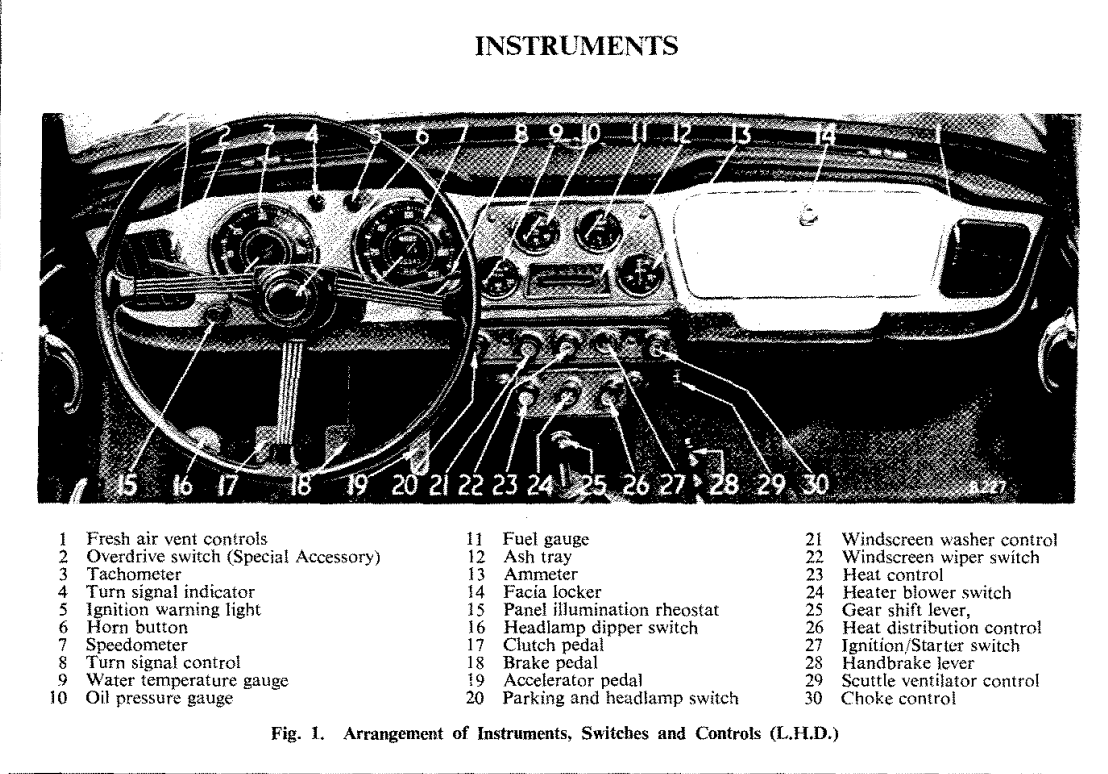

For those of you who asked whether the diagram I was referring to was a RHD car, or that I had spent too much time inhaling fumes in my garage, here is the diagram I was referring to:  OD on left, turn signals on the right.



Andrew
