[TR] Front Sway Bar
Rye Livingston
ryel at mac.com
Sun Oct 1 11:33:25 MDT 2017
I put on a big fat sway bar on my 1960 TR3A in August, getting ready for Triumphest last weekend in Flagstaff. It made a huge difference. The car does not lean. I don't remember the actual size of the bar but I could find out. It's a custom designed model done by Greg Solow in Santa Cruz, and is used by a few vintage Triumph racers.

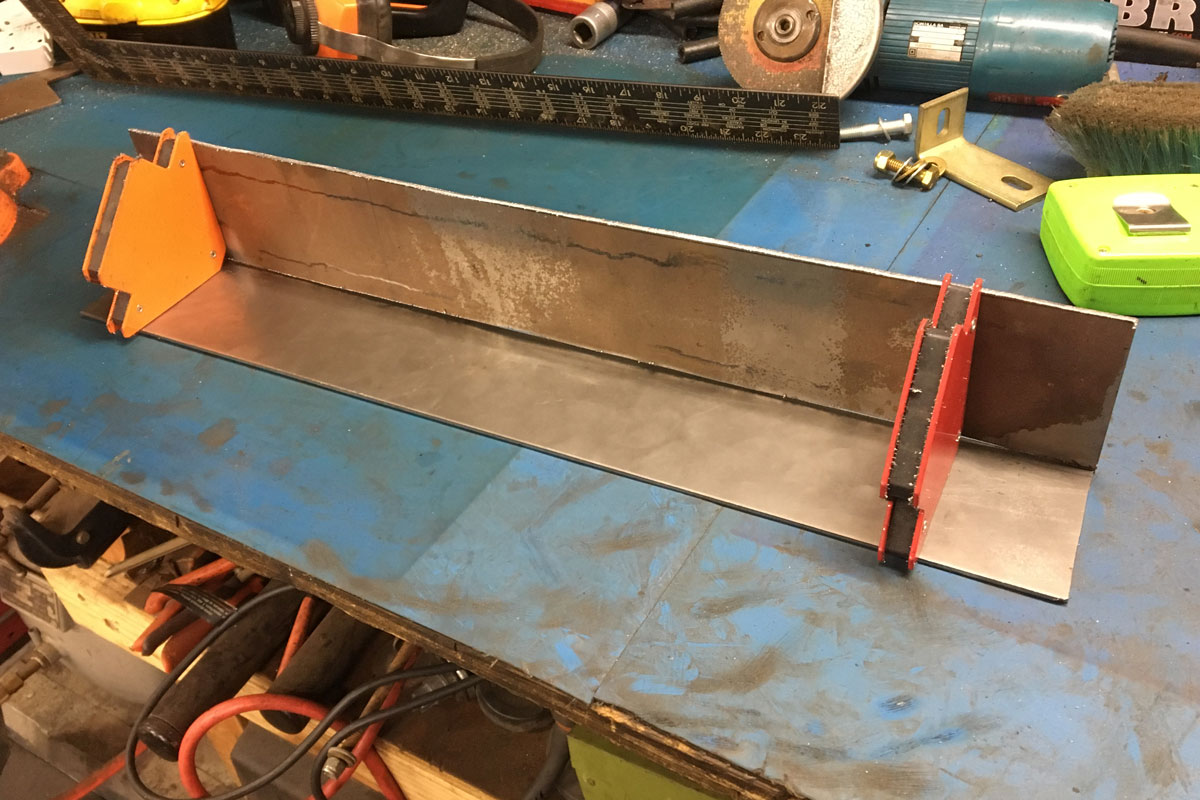

I fabricated a front mounting bracket, which for now I'm not running a front bumper on my Rat Rod, so I took those brackets off and took off the radiator protector, and made basically a wider radiator protector bracket and mount the sway bar to that.
My wife and I won our classes in the autocross at Triumphest, modified TR2, TR3 and TR4. My wife even commented how much it improved the handling.

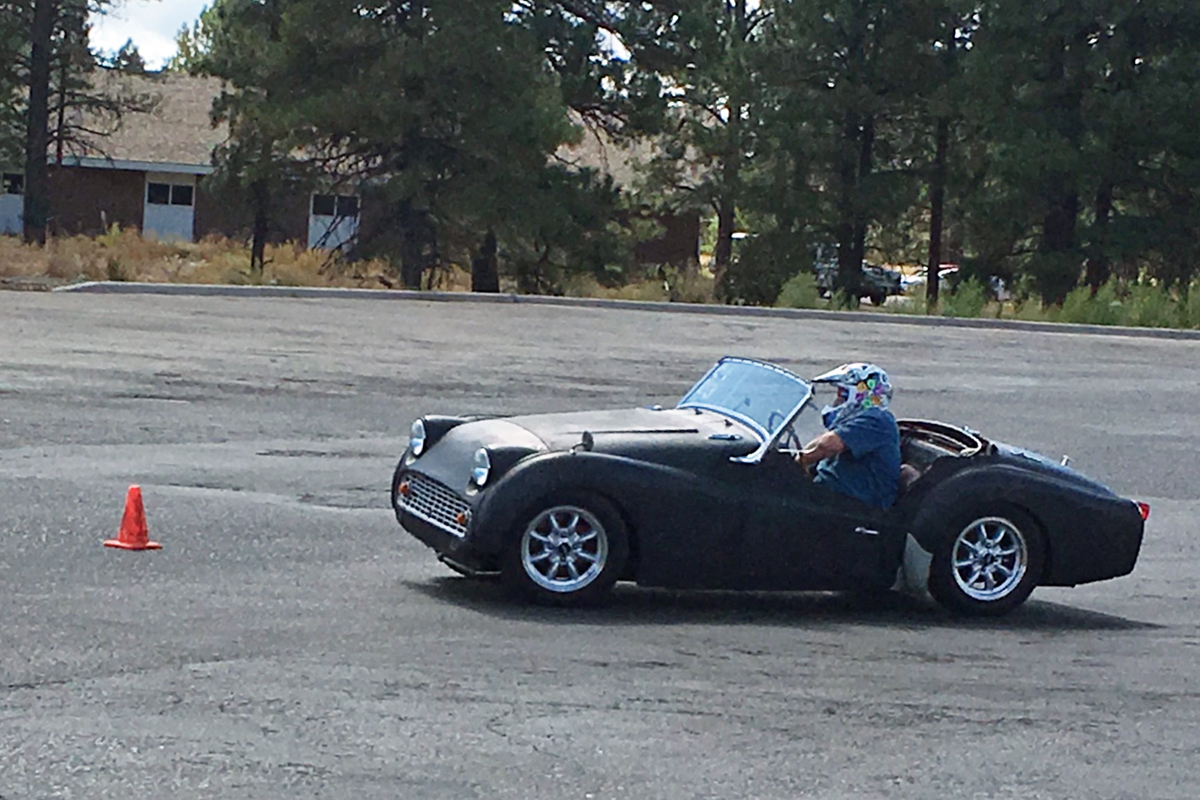

I'm corning as hard as I can in this photo my wife took, and that's max lean, which isn't much.
Also on the drive out to Flagstaff, the driver of a car at the back of the caravan as we were going over a wonderful mountain pass in the Sierras, Monitor Pass 8400', commented at lunch how a TR6 I was following leaned a bit at modest speeds, and my car didn't lean at all.
So yeah, do it. You won't regret it.
Rye
PH: 530-FIND-RYE
On Oct 01, 2017, at 05:59 AM, David Friedlander <forzion7 at gmail.com> wrote:
Hi list!
Any sentiments out there, pro or con, regarding the use of a front sway bar in a TR3 for use in 'spirited' driving (not race use)?
Thanks,
Dave Friedlander
