[TR] Lucas Heater Switch

David Friedlander forzion7 at gmail.com
Mon Nov 27 13:43:47 MST 2017


Carl;

Appreciate that. I not sure how much TR3 owners are aware of how rare
these switches are quickly becoming. TRF doesn't even carry them anymore.
I can't see spending ~ $130 for one of them plus shipping....

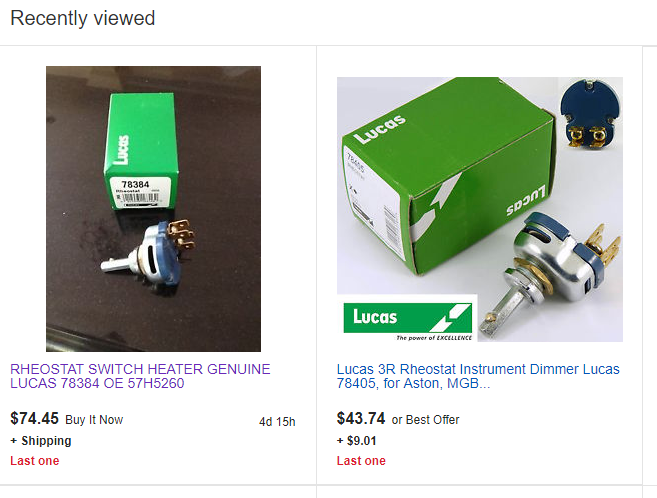

Here's the two switches I came up with. The 78384 is a 5 ohm switch. The
78405 is a 15 ohm switch. The latter may only work on high, as an "on-off"
type operation.... Guess I don't need a rheostat to do that!

[image: Inline image 1]

Thanks,

Dave

On Mon, Nov 27, 2017 at 3:02 PM, CFM-TR <cfmtr3a at verizon.net> wrote:

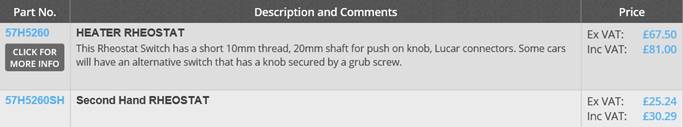

> Moss UK lists 635-180 as Lucas switch 57H5260 which I found a cross
> referenced to PN78384 on ebay.uk listing.
>
> Revington:
>
>
> class=WordSection2>
>
> That would be equivalent to $90 & $34 plus shipping.
>
> Also there are Moss distributors that will discount the Moss price such as
> LBC CarCo for ~$120.
>
> Looking at the Lucas Pages.  The two don’t look interchangeable (78362 &
> 78384)
>
>
>
> But I guess if Moss etal are selling it as a replacement, it will work.
>
> Carl
>
>
>
>
>
> *Fr**om:* Triumphs [mailto:triumphs-bounces at autox.team.net] *On Behalf Of
> *David Friedlander
> *Sent:* Sunday, November 26, 2017 3:15 PM
> *To:* TeriAnn J. Wakeman <tjwakeman at gmail.com>; TR3 Triumphs <
> triumphs at autox.team.net>
> *Subject:* Re: [TR] Lucas Heater Switch
>
>
>
> TeriAnn ~
>
>
>
> *"**According to my Lucas1961 catalogue 78362D is the optional heater *
>
> *switch for the Triumph TR3. takes knob 54332086."*
>
>
>
> ​I don't find a 78362D mentioned anywhere on the web.... at least not in
>
> the way of anything currently for sale....​
>
>
>
>
>
> *​**"**​*
>
> *78405 is not a listed number for 1961*
>
> *​**"*
>
>
>
> FWIW, these Lucas heater switches *are *available on eBay*​*
>
> .
>
>
>
> But, as Randall said in his email of a day or two ago:
>
>
>
> *Stock TR3A is either 78262 or 78362 for (probably) post-60k.  They take*
>
> *different knobs.  78362 is 2.5 ohms.*
>
>
>
> *78384 is 5 ohms (per Lucas 400e master catalog),*
>
> *78405 is 15 ohms according to*
>
> *https://www.autoelectricsupplies.co.uk/product/815/category/153*
> <https://www.autoelectricsupplies.co.uk/product/815/category/153>
>
>
>
> Not really sure what to do for a new heater switch! What do people do if
>
>  their present heater switch fails for some reason? I can't see spending
>
> $140 for it from Moss
>
> (
>
> https://mossmotors.com/switch-rheostat-replacement?assoc=41693
>
> ​).
>
>
>
> Maybe Moss will tell me what the manufacturer's part number is for the
>
> 635-180 they sell....
>
>
>
> Dave​
>
>
>
>
>
> On Sat, Nov 25, 2017 at 11:40 PM, TeriAnn J. Wakeman <tjwakeman at gmail.com>
> wrote:
>
> According to my Lucas1961 catalogue 78362D is the optional heater witch
> for the Triumph TR3. takes knob 54332086
>
> 78384 is for a Morris Minor.  It takes knob 54331278
> 78405 is not a listed number for 1961.
>
> TeriAnn
>
>
>
> On 11/25/17 3:59 PM, Randall wrote:
>
> So, I went to eBay and found heater rheostat switches for the Triumpoh as
>
> either Lucas
>
> P/N 78384 or 78405. Does anyone know: Are these essentially the same item?
>
> Will either
>
> one work on a TR3 heater?
>
>
>
> As usual, depends on your definition of "work".
>
>
>
> Stock TR3A is either 78262 or 78362 for (probably) post-60k.  They take
>
> different knobs.  78362 is 2.5 ohms.
>
>
>
> 78384 is 5 ohms (per Lucas 400e master catalog),
>
> 78405 is 15 ohms according to
>
> https://www.autoelectricsupplies.co.uk/product/815/category/153
>
>
>
>
>
> The higher resistance means you'll get less airflow (likely none at all for
>
> the 15 ohm version) for any setting other than 'max'.  But either of them
>
> should give you "high" and "off", which are the only two setting I ever
>
> found to be useful.
>
>
>
> Neither appears to accept either of the stock TR3 knobs.
>
>
>
> (I didn't check if they will fit in the same hole.)
>
>
>
> -- Randall
>
>
>
>
>
> ** triumphs at autox.team.net **
>
>
>
> Donate: http://www.team.net/donate.html
>
> Archive: http://www.team.net/archive
>
> Forums: http://www.team.net/forums
>
> Unsubscribe/Manage: http://autox.team.net/mailman/options/triumphs/tjwakeman@gmail.com
>
>
>
>
>
> --
>
> Book - The Essential Guide to Overland Travel in the United States and
> Canada <http://overlandtravel.us>
> 2 years to write and 38 years of travel and camping to learn what to write
>
> *Because the world beckons and life waits for no one*
>
>
>
> ** triumphs at autox.team.net **
>
> Donate: http://www.team.net/donate.html
> Archive: http://www.team.net/archive
> Forums: http://www.team.net/forums
> Unsubscribe/Manage: http://autox.team.net/mailman/
> options/triumphs/forzion7 at gmail.com
>
>
>
