[TR] Tr3, conversion from capillary tube to electrically sensed watertemperature gauge

Randall TR3driver at ca.rr.com
Sun Nov 26 21:05:39 MST 2017


> After 2 failures of the capillarity tube water temperature gauge, I am
> thinking of converting to an electrical based system like the tr4/6 uses.
> Anybody out there done that?

I have an early TR4 electrical gauge on my TR3, fed by an original voltage
stabilizer that I modified with an IC.  Works great.  The very early TR4
gauge is almost identical visually to the TR3.  Later ones would work, but
look much more out of place IMO.

-- Randall
-------------- next part --------------
A non-text attachment was scrubbed...
Name: LATE Instrument panel_2.JPG
Type: image/jpeg
Size: 262259 bytes
Desc: not available
URL: <http://autox.team.net/pipermail/triumphs/attachments/20171126/b94c6cde/attachment.jpe>
-------------- next part --------------
A non-text attachment was scrubbed...

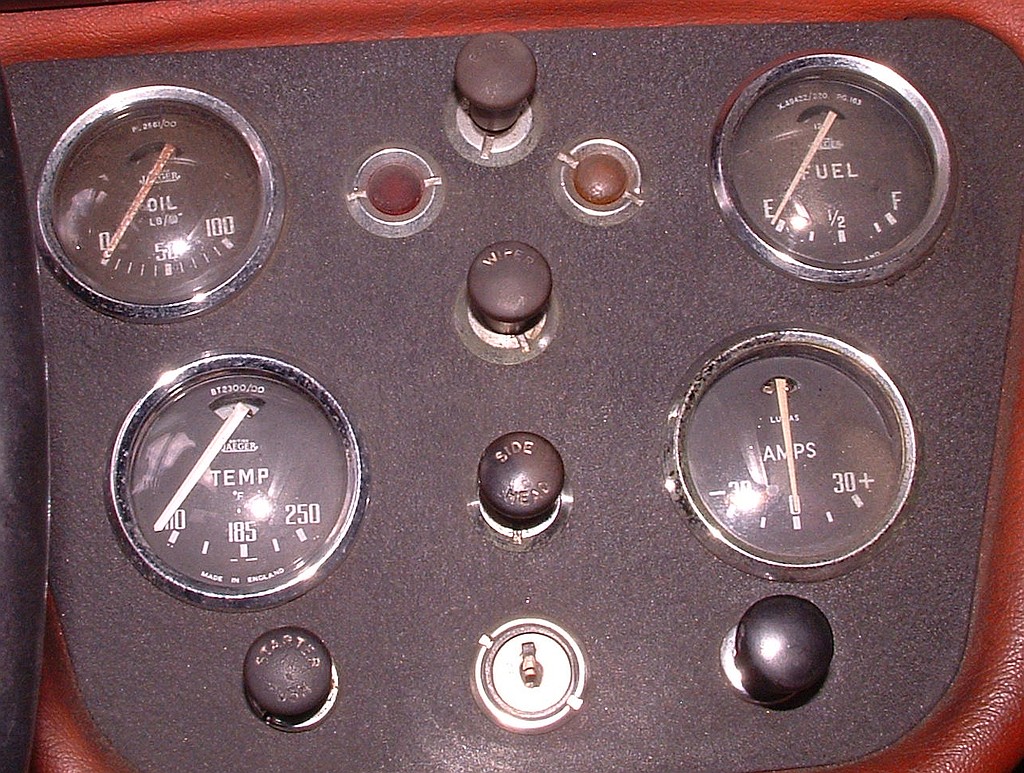

Name: TR3 instrument panel with TR4 temp gauge small.jpg
Type: image/jpeg
Size: 303359 bytes
Desc: not available
URL: <http://autox.team.net/pipermail/triumphs/attachments/20171126/b94c6cde/attachment.jpg>
