[Healeys] BN2 wire routing

[Michael Salter]

Maybe between us we have the answer:

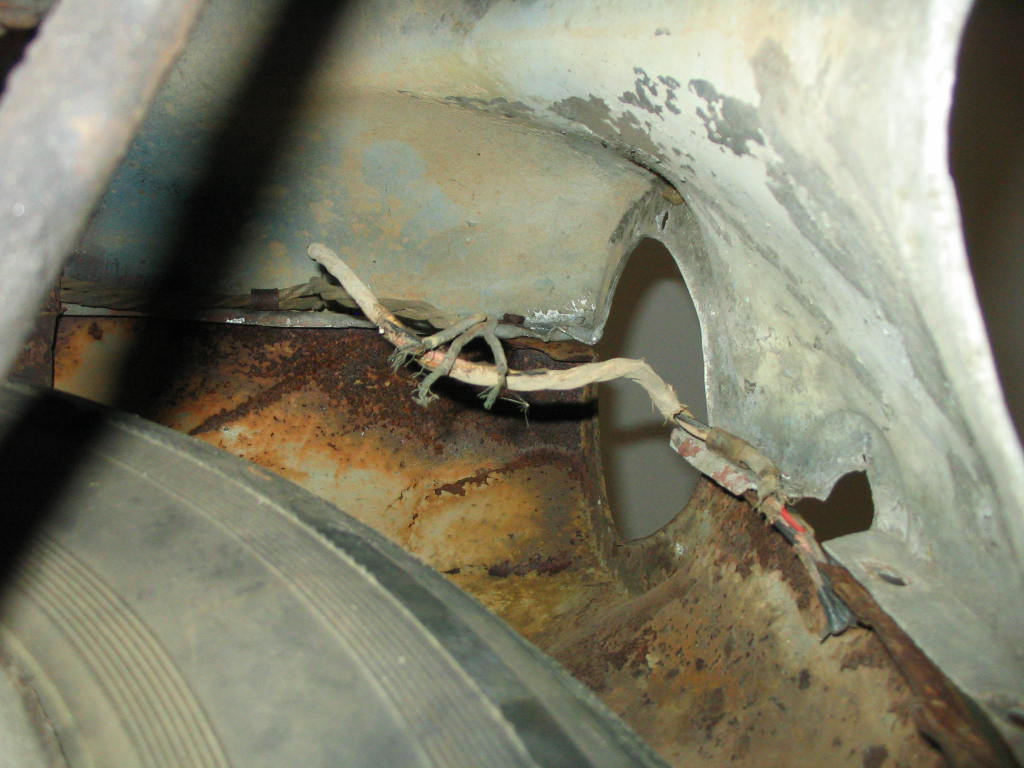

[image: #174 All Pics 001.jpg]
That pic seems to indicate that it goes on the 2nd fender screw from the
front. Weird thing is that on both sides the clip on this BN2 has only a
3/16" hole.

M

On Mon, Feb 16, 2026 at 9:24 PM Michael Salter <michael.salter at gmail.com>
wrote:

> Thanks for those pictures Hank, unfortunately I'm still struggling with
> this one. There is a "P" clip large enough for both cables with a 3/16"
> mount hole somewhere between the headlamp and where the cables join the
> main harness. The only suitable fastener in the area is one of the grille
> mount screws but I have no recollection of ever seeing a clip on one of
> those. As usual I have a photo where what I need to see is just off screen.
>
> M
>
>
> ------------------------------
> *From:* Hank Leach <gradea1 at charter.net>
> *Sent:* Monday, February 16, 2026 8:04:48 PM
> *To:* Michael Salter <michael.salter at gmail.com>; healeys at autox.team.net <
> healeys at autox.team.net>
> *Subject:* RE: [Healeys] BN2 wire routing
>
> Michael- this photo may help to show the cable routing of the harness to
> the connectors for the lights. Obviously taken prior to fitting the body. I
> would have to take a photo of the point at which the connectors come
> together and then to where they then travel down the fender/shroud seam to
> each fixture. I remember putting them in a sheath, which was difficult to
> find. I can't remember how its fixed. This is on an early BN1 but other
> than the color of the harness, about the same routing for the BN2. Hank
> --------------------
>
> From: "Michael Salter" <michael.salter at gmail.com>
> To: <healeys at autox.team.net>
> Sent: February 16, 2026 at 11:55 AM PST
> Subject: [Healeys] BN2 wire routing
> There are 2 cables with 3 wires in each which run from the side and
> headlights.
> The sidelight set have a "P" clip which secures the side light set to the
> fender screw directly below the headlight.
> The cables then travel together to where they join the main harness at the
> point where the inner fender and the radiator support bar meet.
> How are the cables secured before they join the main harness.
> Thanks for looking.
>
> M
>
>
>
>
