[Healeys] BN2 wire routing

[David Nock]

Here are a couple of photos from a untouched BN2 we recently did a frame
up restoartion on

--
David Nock
British Car Specialists
Stockton Ca
209 948 8767
www.britishcarspecialists.com





On 2/16/2026 6:24 PM, Michael Salter wrote:
> Thanks for those pictures Hank, unfortunately I'm still struggling
> with this one. There is a "P" clip large enough for both cables with a
> 3/16" mount hole somewhere between the headlamp and where the cables
> join the main harness. The only suitable fastener in the area is one
> of the grille mount screws but I have no recollection of ever seeing a
> clip on one of those. As usual I have a photo where what I need to see
> is just off screen.
>
> M
>
>
> ------------------------------------------------------------------------
> *From:* Hank Leach <gradea1 at charter.net>
> *Sent:* Monday, February 16, 2026 8:04:48 PM
> *To:* Michael Salter <michael.salter at gmail.com>;
> healeys at autox.team.net <healeys at autox.team.net>
> *Subject:* RE: [Healeys] BN2 wire routing
> Michael- this photo may help to show the cable routing of the harness
> to the connectors for the lights. Obviously taken prior to fitting the
> body. I would have to take a photo of the point at which the
> connectors come together and then to where they then travel down the
> fender/shroud seam to each fixture. I remember putting them in a
> sheath, which was difficult to find. I can't remember how its fixed.
> This is on an early BN1 but other than the color of the harness, about
> the same routing for the BN2. Hank
> --------------------
>
> From: "Michael Salter" <michael.salter at gmail.com>
> To: <healeys at autox.team.net>
> Sent: February 16, 2026 at 11:55 AM PST
> Subject: [Healeys] BN2 wire routing
> There are 2 cables with 3 wires in each which run from the side and
> headlights.
> The sidelight set have a "P" clip which secures the side light set to
> the fender screw directly below the headlight.
> The cables then travel together to where they join the main harness at
> the point where the inner fender and the radiator support bar meet.
> How are the cables secured before they join the main harness.
> Thanks for looking.
> M
>
> _______________________________________________
> Support Team.Nethttp://www.team.net/donate.html
> Suggested annual donation  $12.75
>
> Archive:http://www.team.net/pipermail/healeys http://autox.team.net/archive/healeys
>
> Healeys at autox.team.net
> http://autox.team.net/mailman/listinfo/healeys
>
> Unsubscribe/Manage:http://autox.team.net/mailman/options/healeys/healeydoc@sbcglobal.net
>
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://autox.team.net/pipermail/healeys/attachments/20260217/7355853e/attachment.htm>
-------------- next part --------------
A non-text attachment was scrubbed...

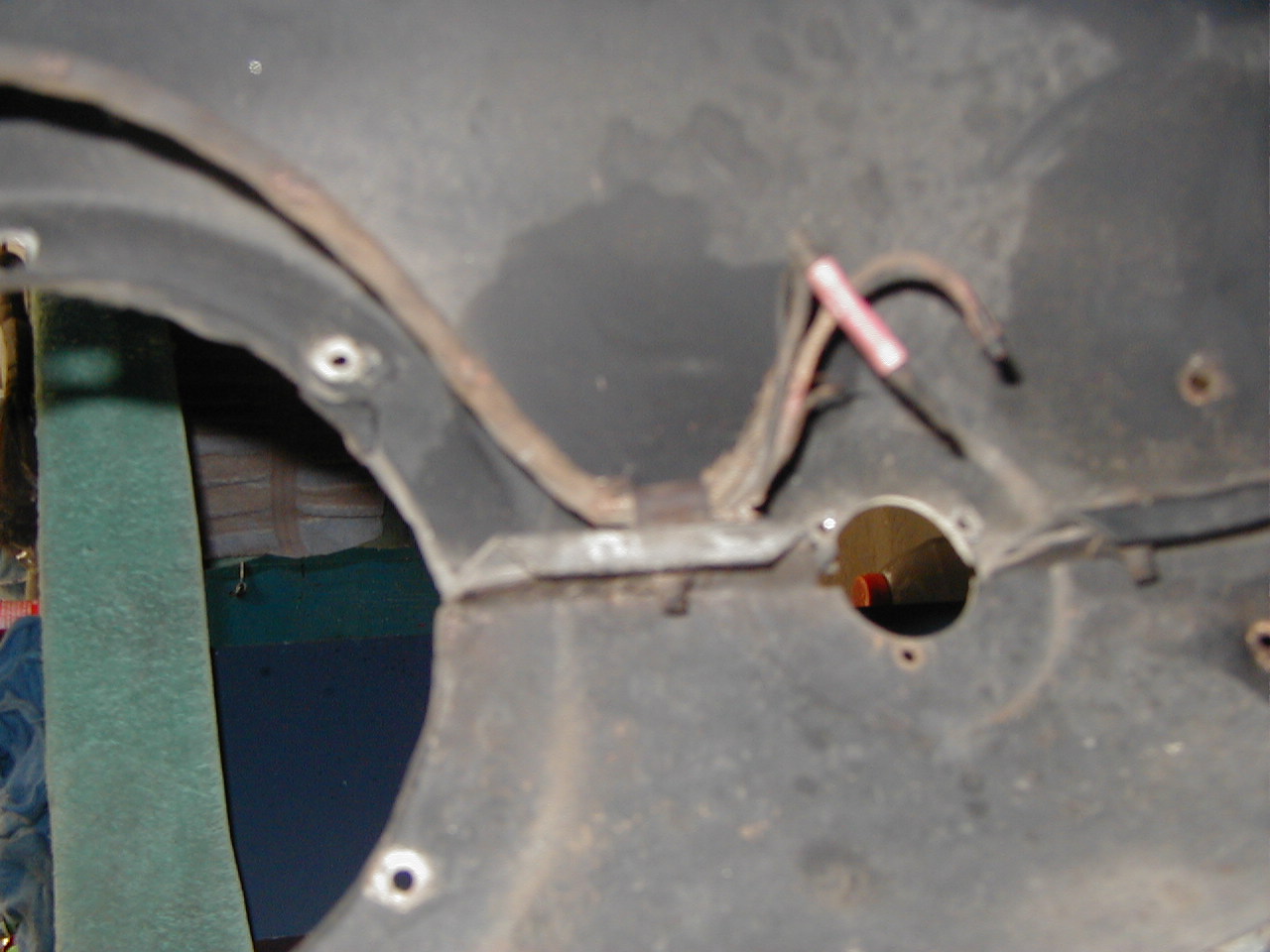

Name: head light rear.JPG
Type: image/jpeg
Size: 179030 bytes
Desc: not available
URL: <http://autox.team.net/pipermail/healeys/attachments/20260217/7355853e/attachment.jpe>
-------------- next part --------------
A non-text attachment was scrubbed...

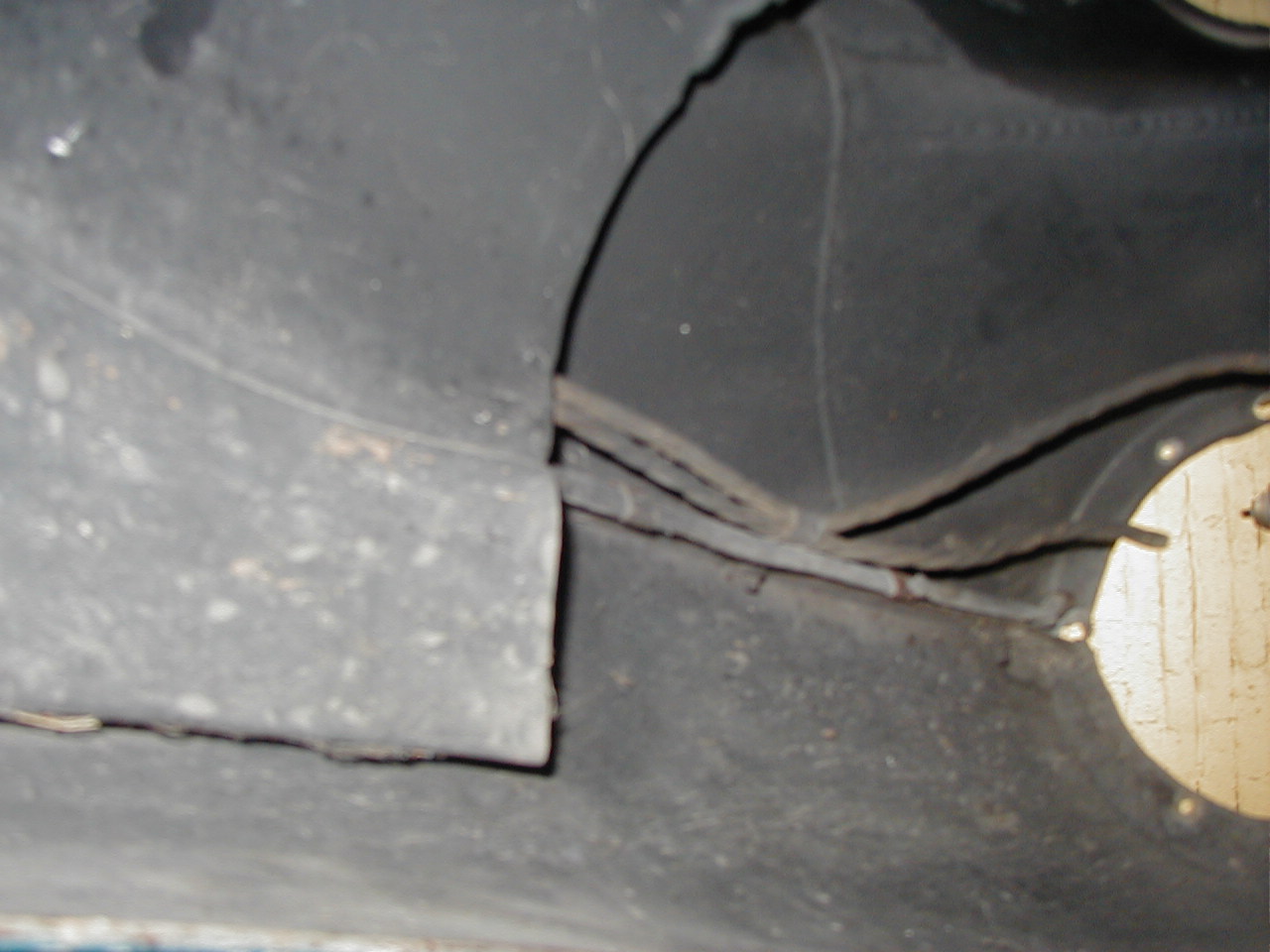

Name: inside fender.JPG
