[WPTA] 1500 Spitfire oil pump install

[Tim Prell]

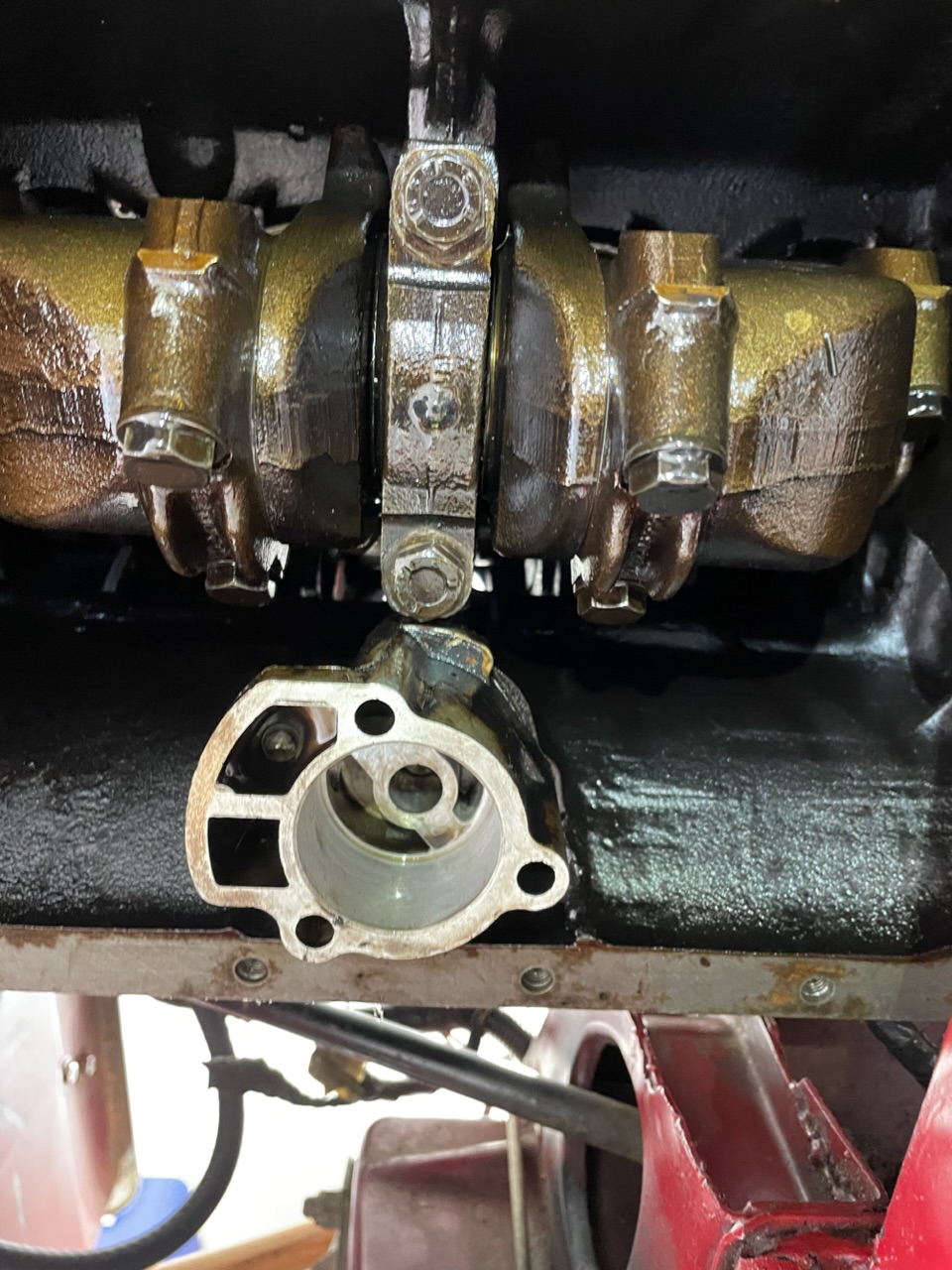

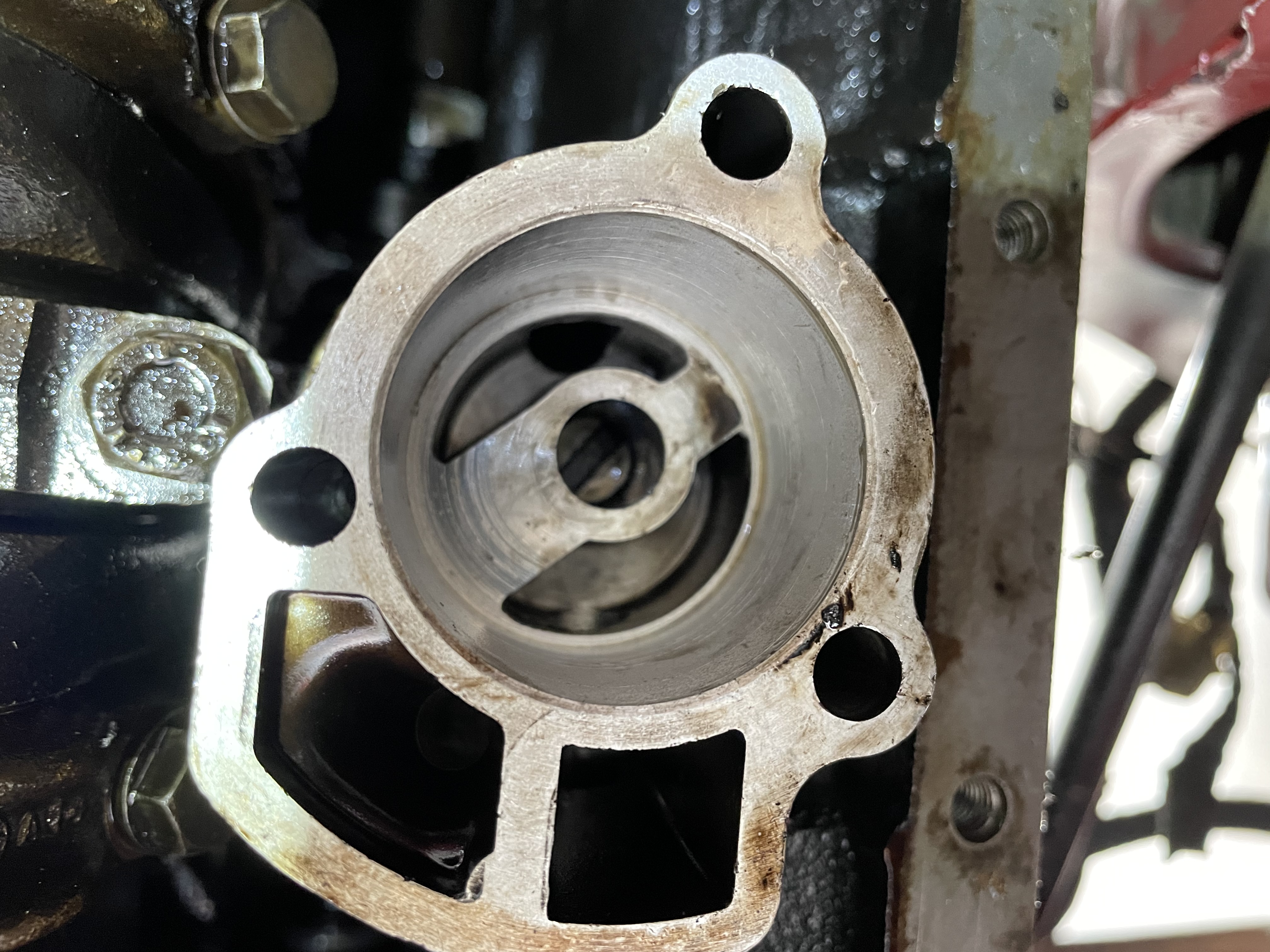

Appreciate the feedback but the problem truly is about this lower unit
housing shifting somehow and not allowing the oil pump rotor shaft to slide
up and into a corresponding fixed collar where the gear below the
distributor sits. I have tried to include better pics to illustrate. I have
pulled the distributor to merely confirm this problem. The rotor shaft
should slide up until almost flush with the top of this housing to meet the
bottom blade of the dizzy gear assembly.

Anyone know how this lower assembly is attached?

Tim

On Wednesday, July 5, 2023, Bruce Stutzman <stutztr4 at gmail.com> wrote:

> Tim
> If you haven't already done so, draw a line with a marker down the dizzy
> amd mount so you can put it together as you got it.
>
>
> On Tue, Jul 4, 2023 at 8:59 PM jerryvvtr4a--- via Wpta <
> wpta at autox.team.net> wrote:
>
>> I’d pull the distributor and see if the pump will then fit. And then
>> place the distributor back into the engine.
>>
>> JVV
>>
>>
>>
>> *From:* Wpta <wpta-bounces at autox.team.net> *On Behalf Of *Gary Fredo via
>> Wpta
>> *Sent:* Tuesday, July 4, 2023 3:27 PM
>> *To:* WPTA <wpta at autox.team.net>; Tim Prell <tjprell at gmail.com>
>> *Subject:* Re: [WPTA] 1500 Spitfire oil pump install
>>
>>
>>
>> From looking at the repair manual and parts manual it looks like it
>> should slide right in.  It's been a long time since I've had an oil pump
>> out of a Spitfire engine.  Probably 30 years so mostly going by memory
>> which isn't too good.  Anyway, you mentioned below that "nothing was moved
>> or loosened at the distributor".  Actually you spun the camshaft and the
>> distributor when you spun the crankshaft.  I think the oil pump shaft slot
>> (at the bottom of the distributor) is slightly off center so you may have
>> to spin the oil pump shaft 180 degrees to get them to line up.  That's
>> about all I can think of right now.
>>
>>
>>
>> Hope that helps.
>>
>>
>>
>> Gary
>>
>>
>>
>> On Tuesday, July 4, 2023 at 12:48:12 PM EDT, Tim Prell via Wpta <
>> wpta at autox.team.net> wrote:
>>
>>
>>
>>
>>
>> I started the process of replacing thrust washers in my 77 Spitfire this
>> spring and after encouragement from a Triumph Spitfire restoration and
>> support forum, also tried replacing main bearings and rod bearings in

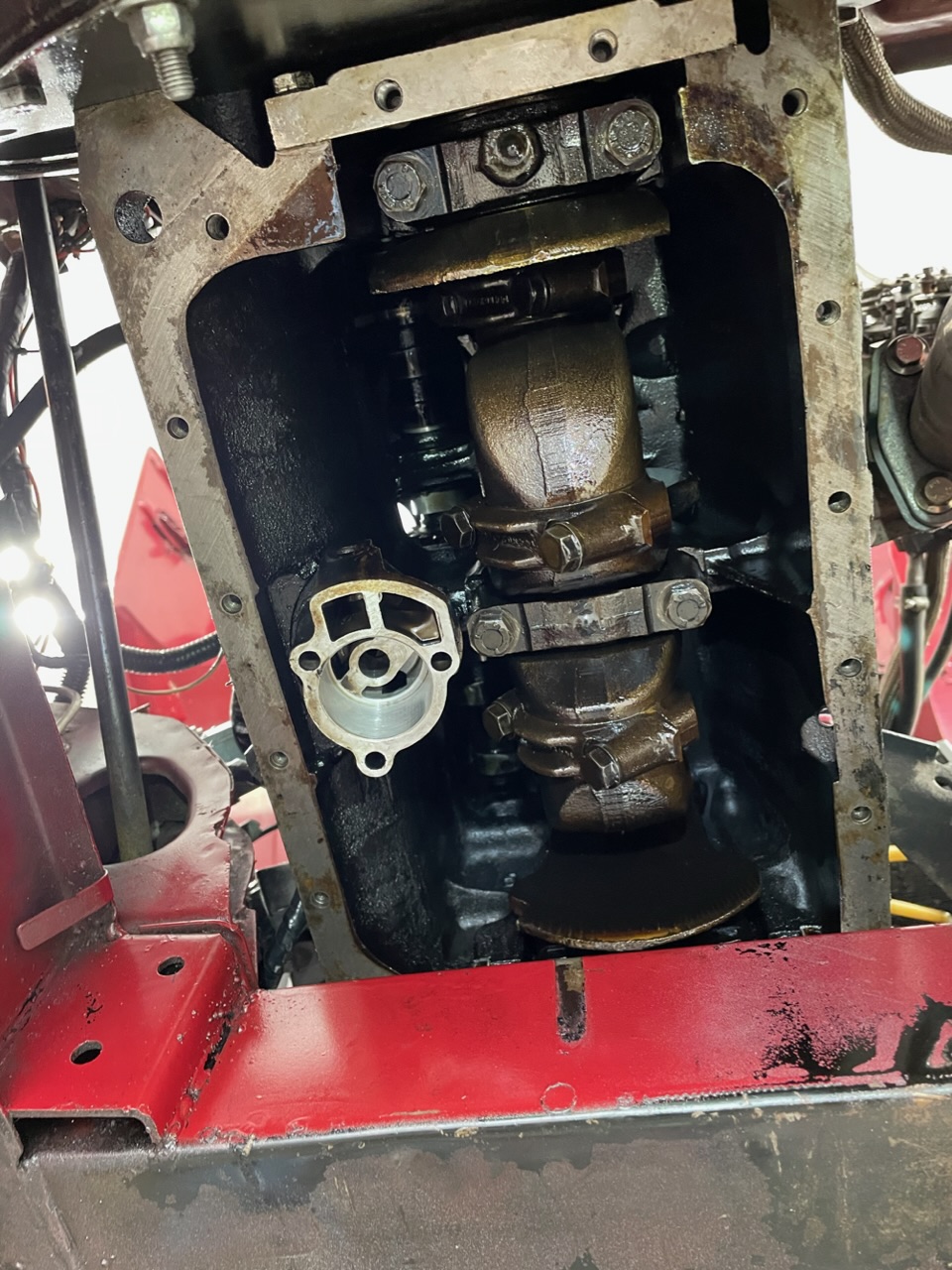

>> place.(for better or worse). In order to access the mid-crank rod bearing
>> bolts, I removed the oil pump (cover plate, inner rotor, outer rotor shaft
>> assembly). Now that all the work is complete and the engine spins as
>> expected, the oil pump inner rotor and shaft will not slide fully back into
>> place - it fits into its slot but stops at ~ 1 - 1.5" from fully inserted.
>>
>> I can see the slot at the end of the distributor assembly and a second
>> opening in a plate for the inner rotor and shaft to slip through which must
>> be blocking the shaft. The inner rotor shaft assembly spins easily. Any
>> ideas on what can be displaced that won't allow the shaft to completely
>> slide into place would be helpful. Nothing was moved or loosened at the
>> distributor - I only worked on the lower end to replace thrust washers and
>> main plus rod bearings. Some pics attached.
>>
>>
>>
>> thanks for feedback (at least serious feedback :-).
>>
>>
>>
>> Tim
>>
