[TR] Power steering rack questions

Sujit Roy triumphstag at gmail.com
Thu Jan 14 11:33:01 MST 2021


Here are images of pumps I see

https://www.google.com/search?q=saginaw+pump&rlz=1C1EJFA_enUS886US886&sxsrf=ALeKk01EVtrEEWdynYkG9jXEqKKpas1bbA:1610648643142&source=lnms&tbm=isch&sa=X&ved=2ahUKEwiFwu3hhZzuAhVNbKwKHdb8C9QQ_AUoAnoECBIQBA&biw=1481&bih=715#imgrc=NaekECcKK-2cUM

Here' what I am trying to do. I am looking for a cheap complete power
steering pump for a Stag including reservoir. Since the Saginaw pump was
used all over the palace, I'm hoping to get one for pennies. The ones I see
seem to have three ports at the back of the reservoir. The Stag only has
two ports HT out in reguler in. Which looks similar to the one
mentioned for the Corvette. I doubt I can get one for a Corvette on the
cheap.

For the pumps with three ports, is the guts of the pump different?

Sujit

On Wed, Jan 13, 2021 at 8:49 PM Brian Thomas <thomasb at queensu.ca> wrote:

> Hi Sujit,
>
>
>
> Seeing your note I immediately thought of my friend Brad who has a ’67
> Corvette which currently has all components out of the engine bay.  I asked
> him about the 3 ports.  Here’s his response:
>
>
>
> Brian,
>
>
>
> Not sure what he's on about with that pump.
>
> Mine is an original 67 engine and correct PS pump.
>
> There are clearly only two hose (HP & Return)
>
> A couple threaded mounting studs and that's it.
>

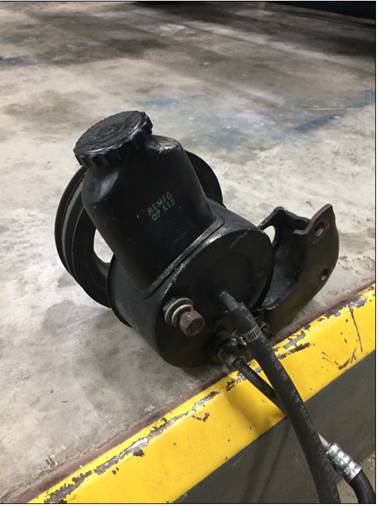

> Also, the pump and reservoir are integral.  See pic following:
>
>
>
>
>
> - Brad
>
>
>
> Maybe Ed doesn’t have a ’67 Corvette pump?  Does the Stag’s look like this
> one?
>
>
>
> Cheers,
>
>
>
> Brian
>
> _____________________________________________________
>
> Brian Thomas                            E-Mail:  Brian.Thomas at QueensU.Ca
>
> 92 Wyona Lane                          Phone:  613-385-1947
>
> Wolfe Island,  Ontario                Toys:  54 TR2,  56 TR3,  67 TR4A,
>
> Canada  K0H 2Y0                                   01 XKR,  75 John Deere
> 920
>
>
>
>
>
>
>
> *From:* Triumphs <triumphs-bounces at autox.team.net> *On Behalf Of *Sujit
> Roy
> *Sent:* January 12, 2021 8:00 PM
> *To:* Q <HDRider570 at att.net>
> *Cc:* Triumphs <triumphs at autox.team.net>
> *Subject:* Re: [TR] Power steering rack questions
>
>
>
> hello Ed.
>
> The corvette ones seem to have 3 ports at the back of the reservoir
> whereas the Stag pump only has two. Do you know what that third one is for?
>
> Sujit
>
>
>
> On Fri, Jan 8, 2021 at 8:21 AM Q <HDRider570 at att.net> wrote:
>
> I used a power steering pump for a 1967 Corvette to replace the one in
> my Stag.  The basic pump is the same but I did have to swap the
> reservoir tank.
>
> I swapped the relief valve tension spring as well but I honestly could
> not see a difference between them. I was just being careful as US cars
> generally run higher line pressure which can damage the rack seals.
>
>
> Edward Hamer
>
> Petaluma CA
>
> ** triumphs at autox.team.net **
>
> Donate: http://www.team.net/donate.html
> <https://can01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.team.net%2Fdonate.html&data=04%7C01%7Cthomasb%40queensu.ca%7C4c0ad15c783245f33f7608d8b75f70c1%7Cd61ecb3b38b142d582c4efb2838b925c%7C1%7C0%7C637460967846923562%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000&sdata=Zv8uEdz3%2FeDDYVbcc1Zax2c0ZnRqAP6%2B3lEFMPK8TxQ%3D&reserved=0>
> Archive: http://www.team.net/pipermail/triumphs
> <https://can01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.team.net%2Fpipermail%2Ftriumphs&data=04%7C01%7Cthomasb%40queensu.ca%7C4c0ad15c783245f33f7608d8b75f70c1%7Cd61ecb3b38b142d582c4efb2838b925c%7C1%7C0%7C637460967846923562%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000&sdata=LbZNBnpZOs5SujPavQCILxhc8I0WvE4YI9XdJUuOJQM%3D&reserved=0>
> http://www.team.net/archive
> <https://can01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.team.net%2Farchive&data=04%7C01%7Cthomasb%40queensu.ca%7C4c0ad15c783245f33f7608d8b75f70c1%7Cd61ecb3b38b142d582c4efb2838b925c%7C1%7C0%7C637460967846933552%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000&sdata=hXFQFbL5vV73DiV5VCoCTPHm2VVGP%2BBTBiRsdkI1iYU%3D&reserved=0>
>
> Unsubscribe/Manage:
> http://autox.team.net/mailman/options/triumphs/triumphstag@gmail.com
> <https://can01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fautox.team.net%2Fmailman%2Foptions%2Ftriumphs%2Ftriumphstag%40gmail.com&data=04%7C01%7Cthomasb%40queensu.ca%7C4c0ad15c783245f33f7608d8b75f70c1%7Cd61ecb3b38b142d582c4efb2838b925c%7C1%7C0%7C637460967846933552%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000&sdata=YEDA%2Fk8uN0KKC%2BuoDxI8TZU4eeNO2eO%2FlaGwraN7ij8%3D&reserved=0>
>
>
>
>
> --
>
> Sujit Roy
> Cupertino, California
>
>
> https://triumphstagblog.wordpress.com/
> <https://can01.safelinks.protection.outlook.com/?url=https%3A%2F%2Ftriumphstagblog.wordpress.com%2F&data=04%7C01%7Cthomasb%40queensu.ca%7C4c0ad15c783245f33f7608d8b75f70c1%7Cd61ecb3b38b142d582c4efb2838b925c%7C1%7C0%7C637460967846943545%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000&sdata=JJpHcr%2BDEbjx6YC8o00wS6NgHxu4OdeYYLw2neMdgow%3D&reserved=0>
>


--
Sujit Roy
Cupertino, California

https://triumphstagblog.wordpress.com/
