[TR] TR3 Wiring Question

[Jeff Scarbrough]

Not an overdrive wire, is it?

On Mon, Oct 19, 2020 at 5:58 PM <keithstewart at bell.net> wrote:

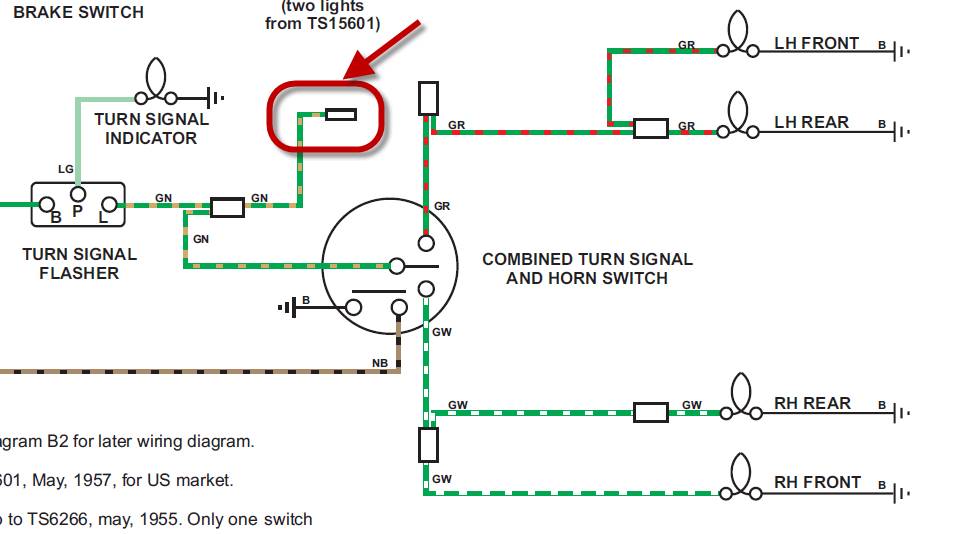

> The AAW wiring diagrams for the TR2/3/3A/3B turn signal lights show a
> green/brown wire branching off from a connector, but going no where. It is
> just terminated by a connector. This seems a bit strange in that “why would
> you run a wire somewhere, to do nothing, and then have to terminate it?”
> Any idea why this was done?
>
>
>
> Thanks in advance for your thoughts, opinions, and guesses.
>
>
>
>
>
> Keith Stewart
>
> keithstewart at bell.net
>
>
>
>
> ** triumphs at autox.team.net **
>
> Donate: http://www.team.net/donate.html
> Archive: http://www.team.net/pipermail/triumphs
> http://www.team.net/archive
>
> Unsubscribe/Manage:
> http://autox.team.net/mailman/options/triumphs/fishplate@gmail.com
>
