[TR] TR4A Body to Frame Attachment

[Keith Stewart]

Thanks Cliff but, no, not the trunk reinforcement. I have that and the
plates for it are a different shape. These are not provided with most body
mounting kits sold by TRF and Moss, but Rimmers have it as 619585.



There are two, one each floor panel.



Moss UK also list it as 619585 and they include it in their kit. When I
checked the Moss UK site, it looks as if it goes just in front of the
cruciform section. If someone has a photo of it installed, that would be
great.



Keith

From: Cliff Hansen <cliff_hansen at outlook.com>
Sent: October 22, 2019 6:06 PM
To: Keith Stewart <keithstewart at bell.net>; triumphs at autox.team.net
Subject: Re: [TR] TR4A Body to Frame Attachment



I don't recognize that plate, and I'm sure a similar plate is not sold with
the body mounting kits. Maybe it was a reinforcement for the trunk floor
where the spare tire hold down goes through?



Cliff





Get Outlook for iOS <https://aka.ms/o0ukef>

  _____

From: Triumphs <triumphs-bounces at autox.team.net
<mailto:triumphs-bounces at autox.team.net> > on behalf of Keith Stewart
<keithstewart at bell.net <mailto:keithstewart at bell.net> >
Sent: Tuesday, October 22, 2019 8:44:19 AM
To: triumphs at autox.team.net <mailto:triumphs at autox.team.net>
<triumphs at autox.team.net <mailto:triumphs at autox.team.net> >
Subject: [TR] TR4A Body to Frame Attachment

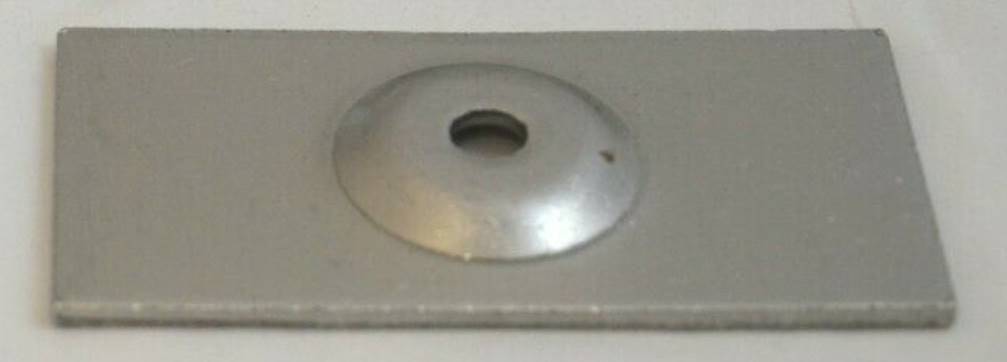

The TR4A body is attached to the frame using two rectangular plates. When
disassembled, my notes show these plates:



But I did not note where or what orientation these plates had. I believe the
originals were painted black. I am hoping someone kept better notes than I
did and can help out with the location and orientation. Thanks in advance
for any info and photos.



Keith Stewart

keithstewart at bell.net <mailto:keithstewart at bell.net>
