[TR] Question on Fuel pumps TR3-4

Keith Stewart keithstewart at bell.net
Fri Feb 23 12:46:09 MST 2018

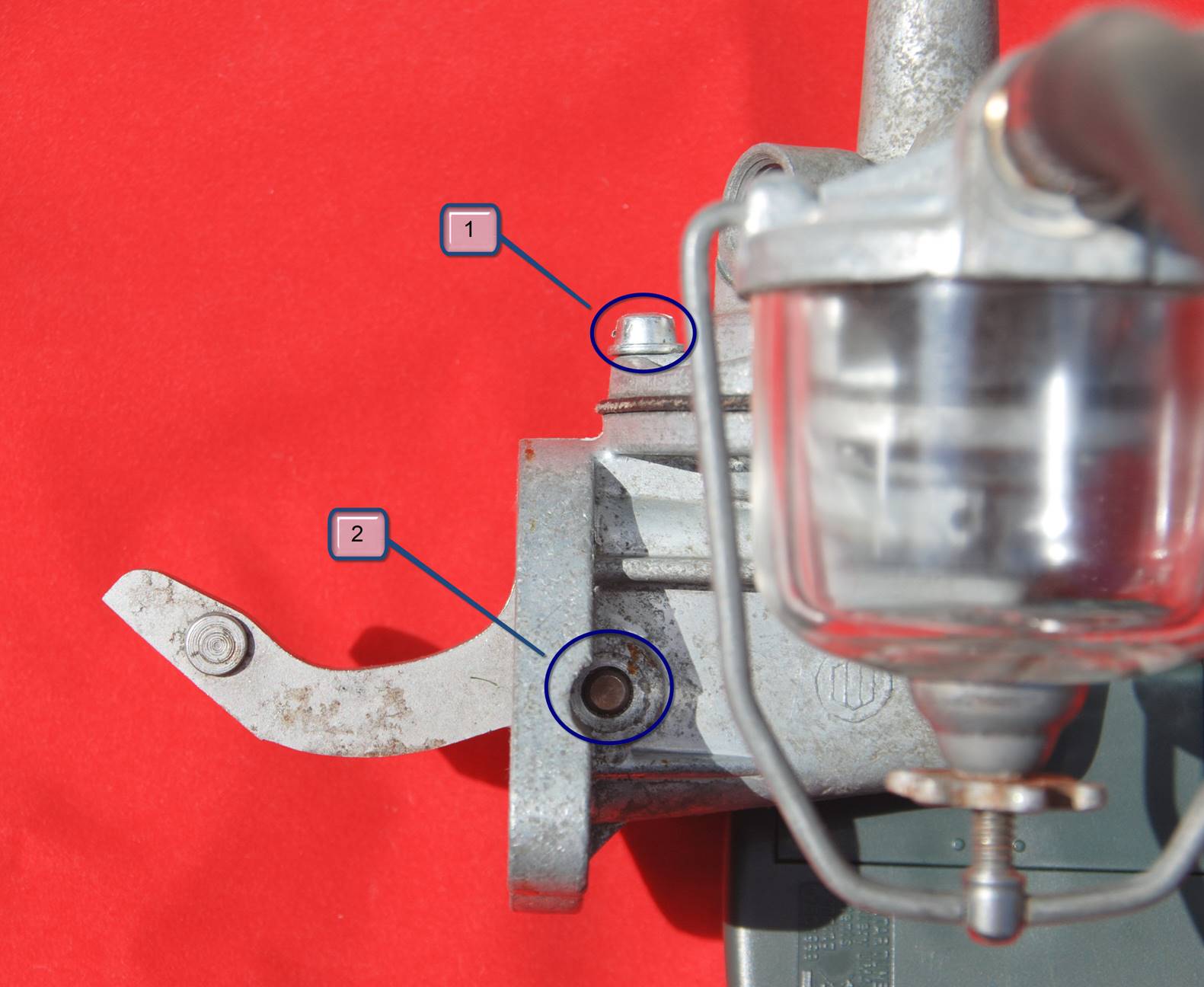

The Canadian pumps I have seen do not have the priming lever, have the top and bottom chambers attached via six shoulder washer like screws (#1) rather than the original pan head screws. Also, the pin about which the pump lever operates does not have ‘c’ clips to attach it (#2).





Keith Stewart

keithstewart at bell.net





From: Doug Mathews [mailto:mathews at uga.edu]
Sent: February 22, 2018 4:32 PM
To: triumphs at autox.team.net
Subject: Re: [TR] Question on Fuel pumps TR3-4



Thanks for all the input.

Given the age of the new ones I have (gosh knows how long ago I bought them). Woulld there be any markins on them that would tell me if they are AC or not. Says made in Canada. There is a stamping of "AC10") on them.

Just trying to figure out what I'm dealing with.

Thanks

Doug
