[TR] Looking for inspiration

[Keith Stewart]

My 57 TR3 had an eFan installed by Bob Schaller that fit so nicely that Bob
just put short sheet metal screws through the mounting tabs on the fan and
screwed them into the metal frame around the radiator fins. When I replaced
the rad with an aluminium Wizard, I did likewise. Tried to keep the mounting
as simple as possible.

The eFan that came on my more recent 62 TR4 was mounted with those zip ties
through the fins. It started to leak at all four mounting spots. Removal
revealed substantial damage to the fins. I purchased another Wizard (same
rad as the TR3). I replaced the eFan with a TrimLine and wanted to install
it the same way as the TR3 but I could not get all four mounting tabs to

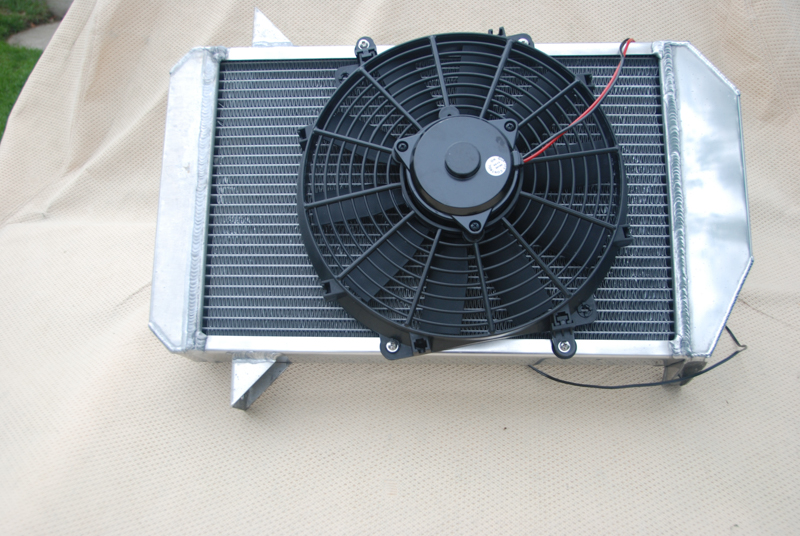

position directly over the frame around the fins. I purchased the install
kit, installed two of the tabs and rotated the fan relative to the rad until
I had four mounting points (two using the mounting kit tabs and two using

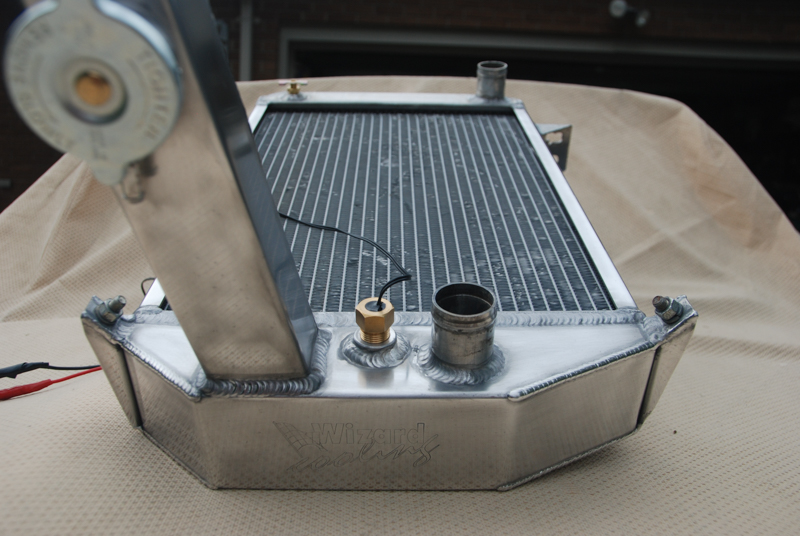

the fan frame mounting tabs) over the frame around the rad. The bung in the
top tank is for the thermostatic temperature control of the fan.


-----Original Message-----
From: David Templeton [mailto:davidt at opentext.com]
Sent: October 29, 2017 5:20 PM
To: Triumphs at Autox Team. Net (triumphs at autox.team.net)
<triumphs at autox.team.net>; NASS-club at yahoogroups.com
Subject: Re: [TR] Looking for inspiration
Afternoon all

Looking for some inspiration, I am reassembling my tr3a and the new radiator
is about to go in.  I am wanting to attach an electric fan to the front.
The fan came with the plastic ties of course but the fins are so dense that
I feel they would get damaged if I pushed them through.  Instead looking for
an alternative attachment method.  So far I have aluminum c-channel to
attach to the side supports now figuring how to attach the fan to it.  I
reach out to the collective smarts for some ideas????? Pictures attached

Thanks in advance
David


-          Tr3a - under repair to back on the road

-          Spitsix - needing a new gearbox and other things
