[Healeys] pilot bushing dimensions

[Jake V]

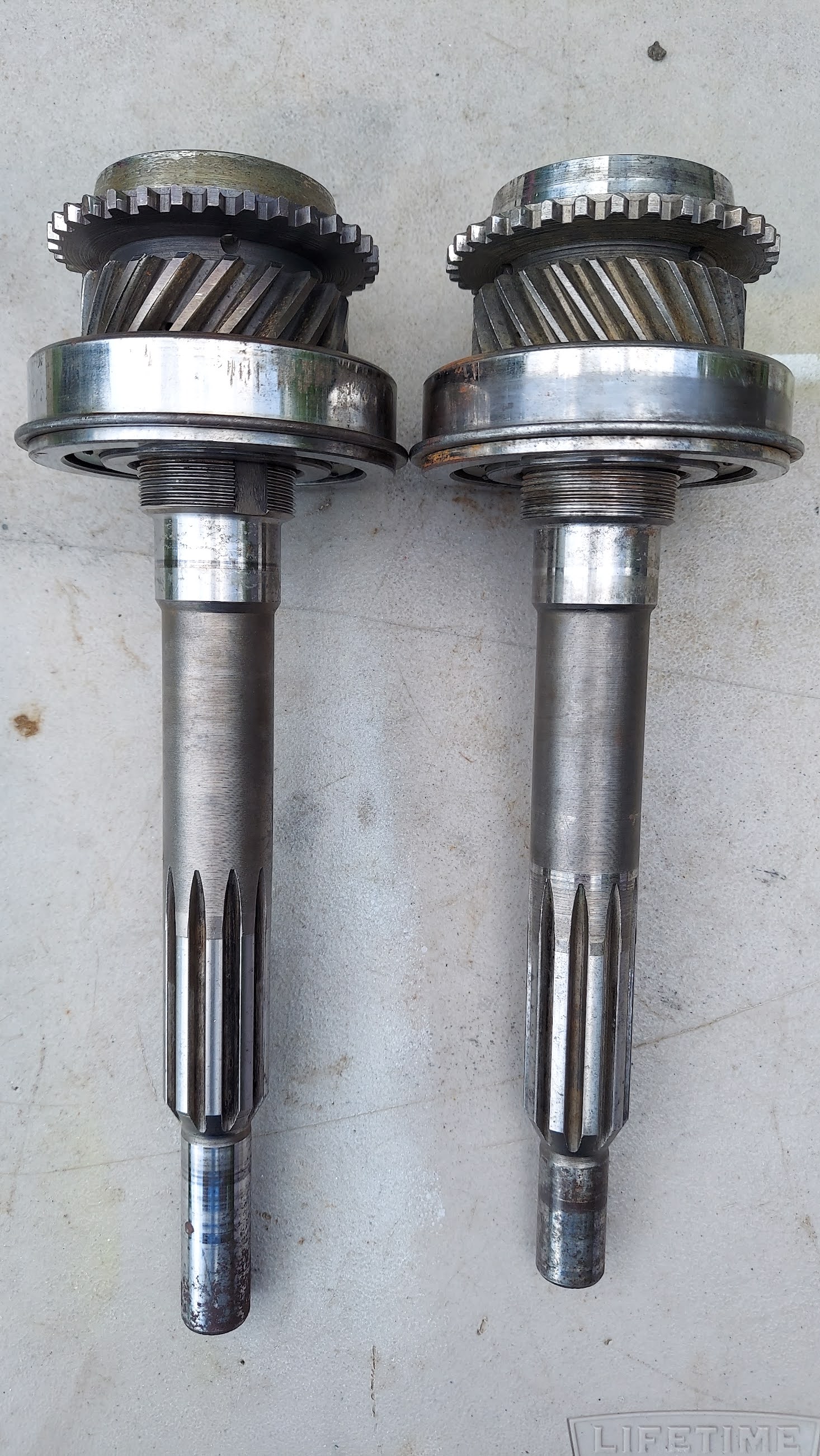

You'll need to shorten your input shaft by ~½" (if I recall correctly?).
Pilot bushings have the same ID.
Or find a BN2 input shaft, if you're rebuilding your gearbox.

[image: 20250503_140552.jpg]

On Fri, Jun 13, 2025 at 10:23 AM warthodson--- via Healeys <
healeys at autox.team.net> wrote:

> Can someone provide the specifications, (length, I.D., & O.D.) of the 100
> & the 6 cyl pilot bushings?
> Also, I want to mate a 6 cyl side shift trans. to a 100 engine. I plan to
> convert the 100 to a hydraulic clutch. Any advise would be appreciated.
> Gary Hodson
