[Fot] TR6 race car re-build - Fuel line questions

[Mike Harmuth]

Mark, here's a link to a chart that specs out what size fuel line to run
based on things like HP and fuel type.

https://historicracinggroup.com/resources/Reference_Material/Canton/Fuel%20Consumption%20and%20Flow%20Quick%20Ref%20by%20CM%20Filters.pdf

I run metal braided lines (AN) fitting type in the trunk and under the
bonnet (with bulkhead fittings) and metal lines in the cockpit, Fuel reg
with gauge in the engine bay where I can see what's getting delivered at
the engine.

mike h


On Wed, Jun 11, 2025 at 11:13 AM Mark Cook via Fot <fot at autox.team.net>
wrote:

> All,
>
>
>
> So, I have gutted and stripped the #55 ‘69 TR6 race car first purchased,
> having a proper roll cage installed and painted, and will be installing a
> newly built engine with triple Weber 45 DCOEs.  Will be ordering some parts
> while cage is installed and body painted.
>
>
>
> Brings me to my questions.   What size fuel lines – 5/16” (-5) or 3/8”
> (-6)?  Also, thoughts on 100% steel braided PTFE, or combination of metal
> fuel line (front to back) with braided to connect to the fuel cell and
> Webers?  Fuel pump, filter and pressure regulator will be in the trunk with
> the fuel cell.   Return line?  The 6 previously had fuel injection and a
> fuel return line.  Not sure it is necessary for the Webers.
>
>
>
> Thanks!
>
>
>
> Mark Cook
>
>
>

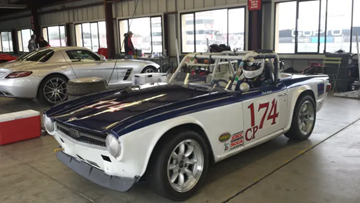

> During Chuck Arnold’s ownership (pre-2018)

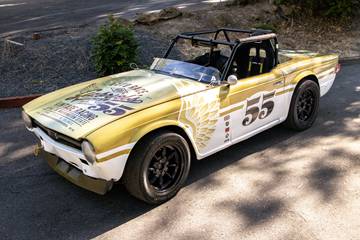

> Prior Owner 2018-2023

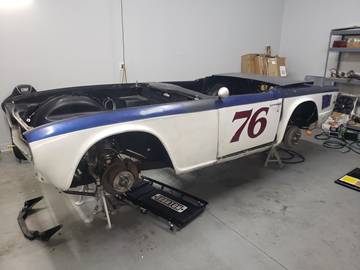

>                               Now (coffee table
> stage)
>
>
>
>
