Charlie & Wray, Thanks for reply. I now know a bit more about what I am in f=
or. Since the tank has to come out I might as well have it sealed even thou=
gh it is not leaking. Arch
Sent from my iPad
On Dec 4, 2013, at 7:11 AM, charles durning <durningcharles@gmail.com> wrote=
:
> Arch,
>=20
> It is possible to fix that pickup tube. The tube should be soldiered or b=
razed in place. A creative radiator shop should be able to remove the tube a=
nd then install a new tube.=20
>=20
> Another option is to abandon that pickup and have a radiator shop install=
a threaded bushing (a drain fitting from a radiator is exactly when you wan=
t) in the top of the tank. the position should be like the picture. =46rom=
there you can attach a tube to a fitting. Be sure to cut the bottom of the=
tube at a 45 degree angle and also keep the tube at least 1/4 inch from the=
bottom of the tank. If the tank has the screen filter be sure to position t=
he new draw tube so it mates up with the screen. =20
>=20
> While that tank is out it will be worth while to clean out any rust or acc=
umulated guck.
>=20
> =20
> Charlie Durning
> =20
> If you are using Google or Gmail, Big Brother is watching.
> =20
>=20
>=20
> On Tue, Dec 3, 2013 at 8:39 PM, Arch Boston <arch.boston@twc.com> wrote:

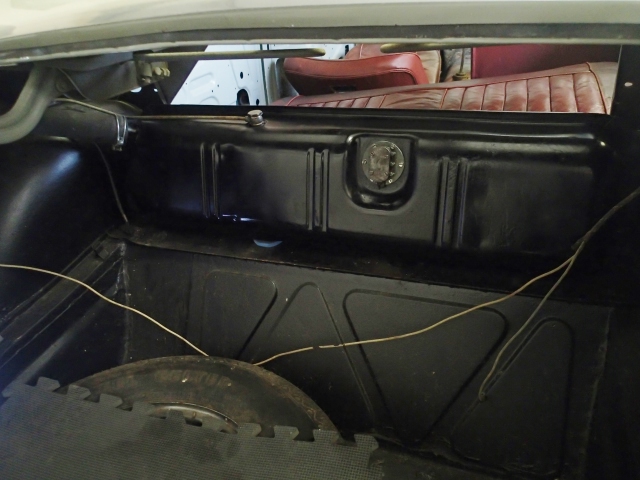

> This is the way the parts book says the gas tank should be set up. Howeve=
r, my Magnette doesn't have the banjo nut on the top of the tank for gas lin=
e. My tank has a rubber hose located approx 1 1/2 inches under the large ru=
bber filler tube for gas line that goes to the fuel pump. This afternoon I r=
eplaced the fuel pump ( which was a waste of time and energy). Disconnectin=
g the fuel line from tank should have spilled out a bit of gas. Nothing. B=
lowing into gas line I could hear air entering gas tank.... Filter not clog=
ged ( if there is one). So.... The pickup tube in the tank must be loose/g=
oofed up. Has anyone replaced/ repaired this pickup? Hate to go in complet=
ely blind. Arch
>=20
>=20
> http://1.bp.blogspot.com/-fLg6x6Q8Qk0/UdR7VQ9MbYI/AAAAAAAADIs/ecq6w4bKdGk/=
s640/2013-07-02+Magnette+gas+tank+refurbish+017+
>=20
>=20
> Sent from my iPad
> _______________________________________________
> Zmagnette mailing list
>=20
> Donate: http://www.team.net/donate.html
> Archive: http://www.team.net/archive
> Forums: http://www.team.net/forums
> Unsubscribe/Manage: http://autox.team.net/mailman/options/zmagnette/durnin=
gcharles@gmail.com
>=20
>=20
> _______________________________________________
> Zmagnette mailing list
>=20
> Donate: http://www.team.net/donate.html
> Archive: http://www.team.net/archive
> Forums: http://www.team.net/forums
> Unsubscribe/Manage: http://autox.team.net/mailman/options/zmagnette/arch.b=
oston@twc.com
>=20
--Apple-Mail-230B259D-2026-43BA-90F9-B9807F100680
Content-Transfer-Encoding: 7bit
charset=utf-8
<html><head></head><body bgcolor="#FFFFFF"><div>Charlie & Wray, Thanks for
reply. I now know a bit more about what I am in for. Since the tank
has to come out I might as well have it sealed even though it is not leaking.
Arch<br><br>Sent from my iPad</div><div><br>On Dec 4, 2013, at 7:11 AM,
charles durning <<a
href="mailto:durningcharles@gmail.com";>durningcharles@gmail.com</a>>
wrote:<br><br></div><div></div><blockquote type="cite"><div><div
dir="ltr"><div>Arch,</div><div><br></div><div>It is possible to fix that
pickup tube. The tube should be soldiered or brazed in place. A
creative radiator shop should be able to remove the tube and then install a new
tube. </div>
<div><br></div><div> Another option is to abandon that pickup and have a
radiator shop install a threaded bushing (a drain fitting from a radiator is
exactly when you want) in the top of the tank. the
position should be like the picture. From there you can attach a tube to
a fitting. Be sure to cut the bottom of the tube at a 45 degree angle and
also keep the tube at least 1/4 inch from the bottom of the tank. If the
tank has the screen filter be sure to position the new draw tube
so it mates up with the screen. </div>
<div><br></div><div>While that tank is out it will be worth while to clean out
any rust or accumulated guck.</div></div><div class="gmail_extra"><br
clear="all"><div><div dir="ltr"><div> </div>
<div>Charlie Durning</div>
<div> </div>
<div><font size="4">If you are using Google or Gmail, Big Brother is
watching.</font></div>
<div> </div></div></div>
<br><br><div class="gmail_quote">On Tue, Dec 3, 2013 at 8:39 PM, Arch Boston
<span dir="ltr"><<a href="mailto:arch.boston@twc.com";
target="_blank">arch.boston@twc.com</a>></span> wrote:<br><blockquote
class="gmail_quote" style="margin:0 0 0 .8ex;border-left:1px #ccc
solid;padding-left:1ex">
This is the way the parts book says the gas tank should be set up.
However, my Magnette doesn't have the banjo nut on the top of the tank
for gas line. My tank has a rubber hose located approx 1 1/2 inches under
the large rubber filler tube for gas line that goes to the fuel pump.
This afternoon I replaced the fuel pump ( which was a waste of time and
energy). Disconnecting the fuel line from tank should have spilled out a
bit of gas. Nothing. Blowing into gas line I could hear air
entering gas tank.... Filter not clogged ( if there is one). So....
The pickup tube in the tank must be loose/goofed up. Has anyone
replaced/ repaired this pickup? Hate to go in completely blind.
Arch<br>
