[TR] [NET] Pilot bush -- TR3

[Greg Lemon]

David,

I am glad you got it out.  I have also read the myriad of descriptions of
the thing just popping out.  I have tried and given up on several cars.
However, have never had an issue re-using the old one.

I have a good stock of unused new ones bought with best intentions...

Greg Lemon
TR250


On Fri, Nov 26, 2021, 11:07 AM David Friedlander <forzion7 at gmail.com> wrote:

> Thanks again to everyone. I divided a method for getting the pilot bush
> out.
>

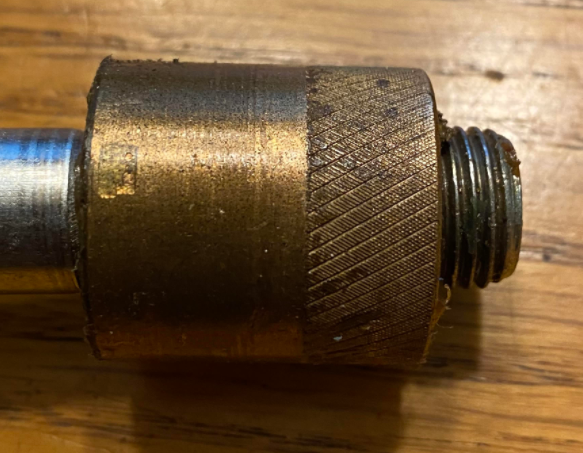

> See photo:
>
> [image: image.png]
>
> I didn't know it had a knurled end! No wonder it had such a grip on the
> crank!
>
> Dave
>
>
> On Wed, Nov 17, 2021 at 4:35 PM tritriple <tritriple at aol.com> wrote:
>
>> When all else fails......dynamite!!!! Just a small charge....
>>
>>
>>
>> Sent from my Verizon, Samsung Galaxy smartphone
>>
>>
>> -------- Original message --------
>> From: David Friedlander via NET <net at newenglandtriumphs.org>
>> Date: 11/17/21 3:41 PM (GMT-05:00)
>> To: Sujit Roy <triumphstag at gmail.com>
>> Cc: Randy and Valerie DeRuiter <deruiterville at hotmail.com>,
>> tritriple at aol.com, Triumphs <triumphs at autox.team.net>, New England
>> Triumphs <net at newenglandtriumphs.org>
>> Subject: Re: [NET] [TR] Pilot bush -- TR3
>>
>> Thank you, everyone for all your well-informed and helpful responses!
>>
>> I have now removed the flywheel and delivered it to the local machine
>> shop for resurfacing. In the meantime, the pilot bush STILL will not
>> come out of the back of the crankshaft and I am devising plans to get it to
>> move. I love when people say, "Do this and it will just pop out!"
>> Riggght....  :- )
>>
>> Dave
>>
>>
>>
>> On Wed, Nov 17, 2021 at 3:28 PM Sujit Roy <triumphstag at gmail.com> wrote:
>>
>>> When taking flywheel off on a Stag they recommend replacing the bolts.
>>> Not cheap.
>>>
>>>
>>> On Wed, Nov 17, 2021, 12:03 PM Randy and Valerie DeRuiter <
>>> deruiterville at hotmail.com> wrote:
>>>
>>>> No problem with an impact wrench for removal.  To reinstall, here is my
>>>> version of a flywheel locking tool.  I'm unsure of the Churchill Tool
>>>> number, but note the calibrated on the 2x4 wedge where the flywheel teeth
>>>> dug in and locked.  Just tap the wedge in the starter hole to immobilize
>>>> the flywheel, torque down, and remove the highly calibrated tool for later
>>>> use.
>>>>
>>>> Randy
>>>>
>>>> ------------------------------
>>>> *From:* Triumphs <triumphs-bounces at autox.team.net> on behalf of David
>>>> Friedlander <forzion7 at gmail.com>
>>>> *Sent:* Wednesday, November 17, 2021 11:27 AM
>>>> *To:* tritriple at aol.com <tritriple at aol.com>
>>>> *Cc:* triumphs at autox.team.net <triumphs at autox.team.net>;
>>>> net at newenglandtriumphs.org <net at newenglandtriumphs.org>
>>>> *Subject:* Re: [TR] [NET] Pilot bush -- TR3
>>>>
>>>>
>>>> Since the flywheel/crank rotate when I try to loosen the flywheel bolts
>>>> with a ratchet wrench, is it permissible to use an air impact wrench to
>>>> loosen them or is that not a good idea?
>>>>
>>>> Dave
>>>>
>>>>
>>>> On Wed, Nov 17, 2021 at 10:34 AM John Bowe via NET <
>>>> net at newenglandtriumphs.org> wrote:
>>>>
>>>> A couple ways to remove bush..... If you have a wood dowel the right
>>>> size.  Fill the hole with grease and then jam dowel into bush. The pressure
>>>> of grease behind bush should push it out.  Another way is to find a thread
>>>> tap the right size for inside bush and wind it in. The tap will bottom out
>>>> in flywheel and pull the bush out.  If you have a small seal puller with
>>>> the outside facing arms that could work if there is room for fingers to get
>>>> behind bush edges.    Just a few of many ways.    See ya, John B.
>>>>
>>>>
>>>> -----Original Message-----
>>>> From: David Friedlander via NET <net at newenglandtriumphs.org>
>>>> To: TR3 Triumphs <triumphs at autox.team.net>; New England Triumphs <
>>>> net at newenglandtriumphs.org>
>>>> Sent: Wed, Nov 17, 2021 10:03 am
>>>> Subject: [NET] Pilot bush -- TR3
>>>>
>>>> Good morning listers!
>>>>
>>>> A quick question: To remove the pilot bushing from the crank, do
>>>> I also have to remove the flywheel? I've already removed the disc
>>>> and pressure plate but the pilot doesn't seem to want to budge....
>>>>
>>>> Thanks for any insights,
>>>>
>>>> Dave
