[TR] Mark I Federal charcoal cannisters

[John Mitchell]

I just went and checked my car and found the holes for the bracket on
the driver's side shock tower.?? It's so much easier when you know where
to look.?? Thanks again.

On 10/23/2019 5:16 PM, Michael Burdick wrote:

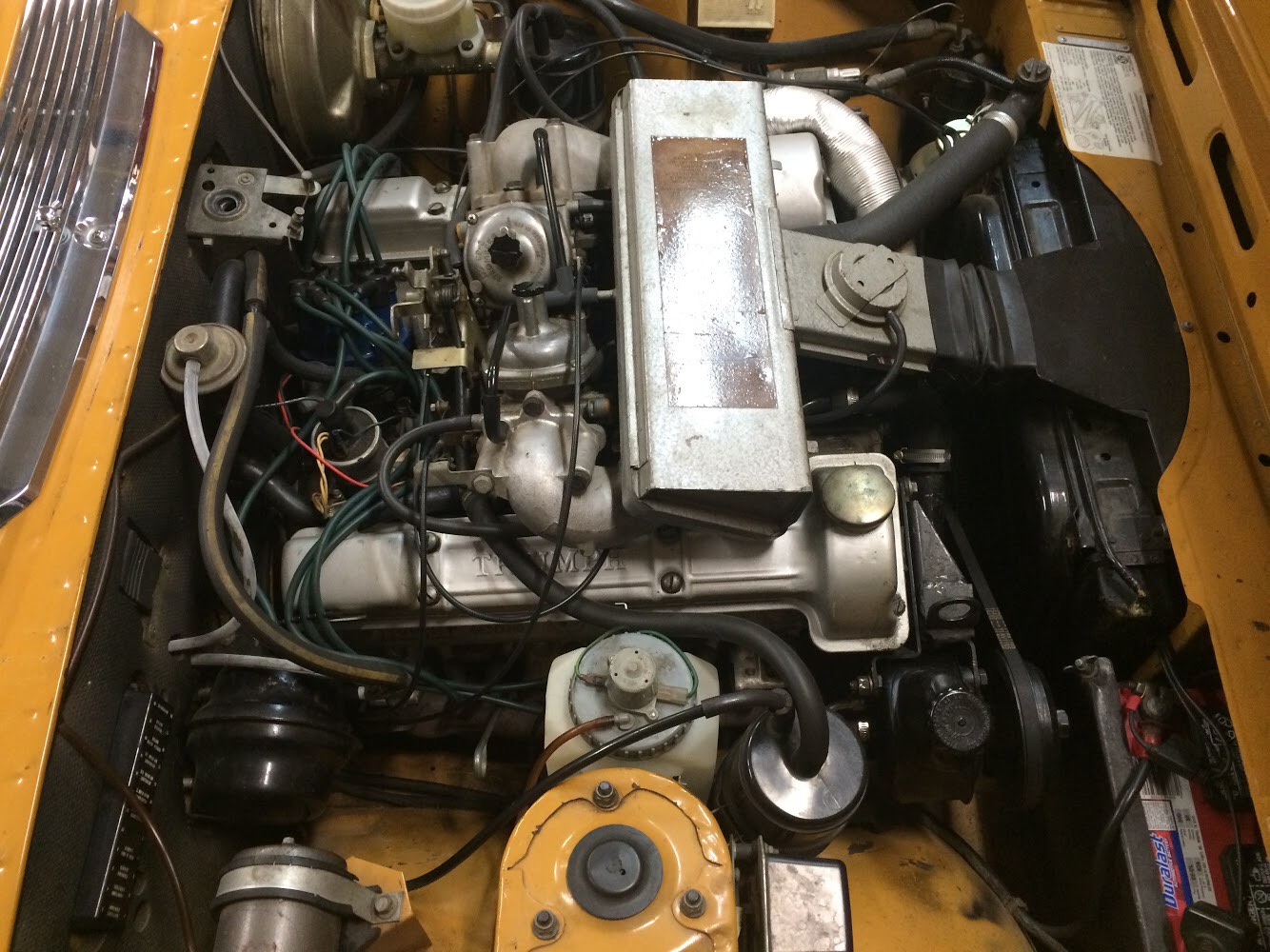

> Here are a couple of pictures from LE13145U. I think it is pretty much
> unmolested and original as I bought it from the second owner about 20
> years ago and he bought it in 1979. It has the two canister setup and
> you can see that they are minutes on each wheel well. Hope this helps.
>
> Best regards,
> Mike
>
>
> On Wed, Oct 23, 2019 at 2:07 PM Sujit Roy <triumphstag at gmail.com
> <mailto:triumphstag at gmail.com>> wrote:
>
>     I do recall seeing??in the ROM or parts book or somewhere else an
>     illustration of a Stag with two canisters. The canisters were
>     placed on each strut tower.
>
>     Sujit
>
>     On Tue, Oct 22, 2019 at 6:17 PM John Mitchell <jmitch at snet.net
>     <mailto:jmitch at snet.net>> wrote:
>
>         I don't know.?? My car had no charcoal canister at all.?? I do
>         see a place on the right shock tower where the bracket should
>         attach.?? I picked up all the parts from Michael Coffey and he
>         thought there were 2 canisters also.
>
>         On 10/22/2019 8:52 PM, Frank Magnusson wrote:
>>         Hmm. ??Mine is in that range and only has the one. ??Where is
>>         the second cannister suppossed to be located?
>>
>>         Sent from my iPad
>>
>>         On Oct 22, 2019, at 7:46 PM, John Mitchell <jmitch at snet.net
>>         <mailto:jmitch at snet.net>> wrote:
>>
>>>         I was just reading in Stag News that from LE11276 until LE
>>>         20000 they hat 2 identical canisters.?? This is according to
>>>         Tony Fox.?? The story discusses the differences in Federal
>>>         Stags.
>>>
>>>         On 10/22/2019 8:13 PM, Frank Magnusson wrote:
>>>>
>>>>
>>>>         <Message: 6
>>>>         Date: Mon, 21 Oct 2019 19:01:19 -0400
>>>>         From: John Mitchell <jmitch at snet.net <mailto:jmitch at snet.net>>
>>>>         To: 'Triumphs' <triumphs at autox.team.net
>>>>         <mailto:triumphs at autox.team.net>>
>>>>         Subject: [TR] Mark I Federal charcoal canisters
>>>>         Message-ID: <d13a9748-b9be-2d64-83f7-ae96b85e9e86 at snet.net
>>>>         <mailto:d13a9748-b9be-2d64-83f7-ae96b85e9e86 at snet.net>>
>>>>         Content-Type: text/plain; charset=utf-8; format=flowed
>>>>
>>>>         Can anyone send me a picture of a Mark I federal stag with
>>>>         the 2??
>>>>         charcoal canisters.?? My car is a 72 and supposedly should
>>>>         have had the 2??
>>>>         canisters, but I only can find an attachment point for one.>
>>>>
>>>>         Hi John, mine is also a 72 Federal Mk I and has a single
>>>>         charcoal cannister mount on the R shock tower. ??I'd be
>>>>         happy to send a pic if it would be of any use.
>>>>
>>>>         I thought the difference in cannisters was 2 or 3 port from
>>>>         Mk I to Mk II not 1 or 2 cannisters but IDK. ??Mine is a 2
>>>>         port.
>>>>
>>>>         Frank
>>>>
>>>>         Sent from my iPad
