[TR] Looking for a decent TR2/TR3 Temp gauge - with or without capillary tube
Chris Simo
ccsimonsen at gmail.com
Tue Apr 24 12:02:47 MDT 2018
I received a gauge from a list member on Friday. Thanks to all who
responded.
I got home from the Gathering (Triumph club of the Carolinas car show up
near Mayberry, NC) on Sunday and went to work to clean it up. It worked
out well and I thought I'd write something up that I hope the rest of you
can add your wisdom and I'll turn it into a club newsletter article.

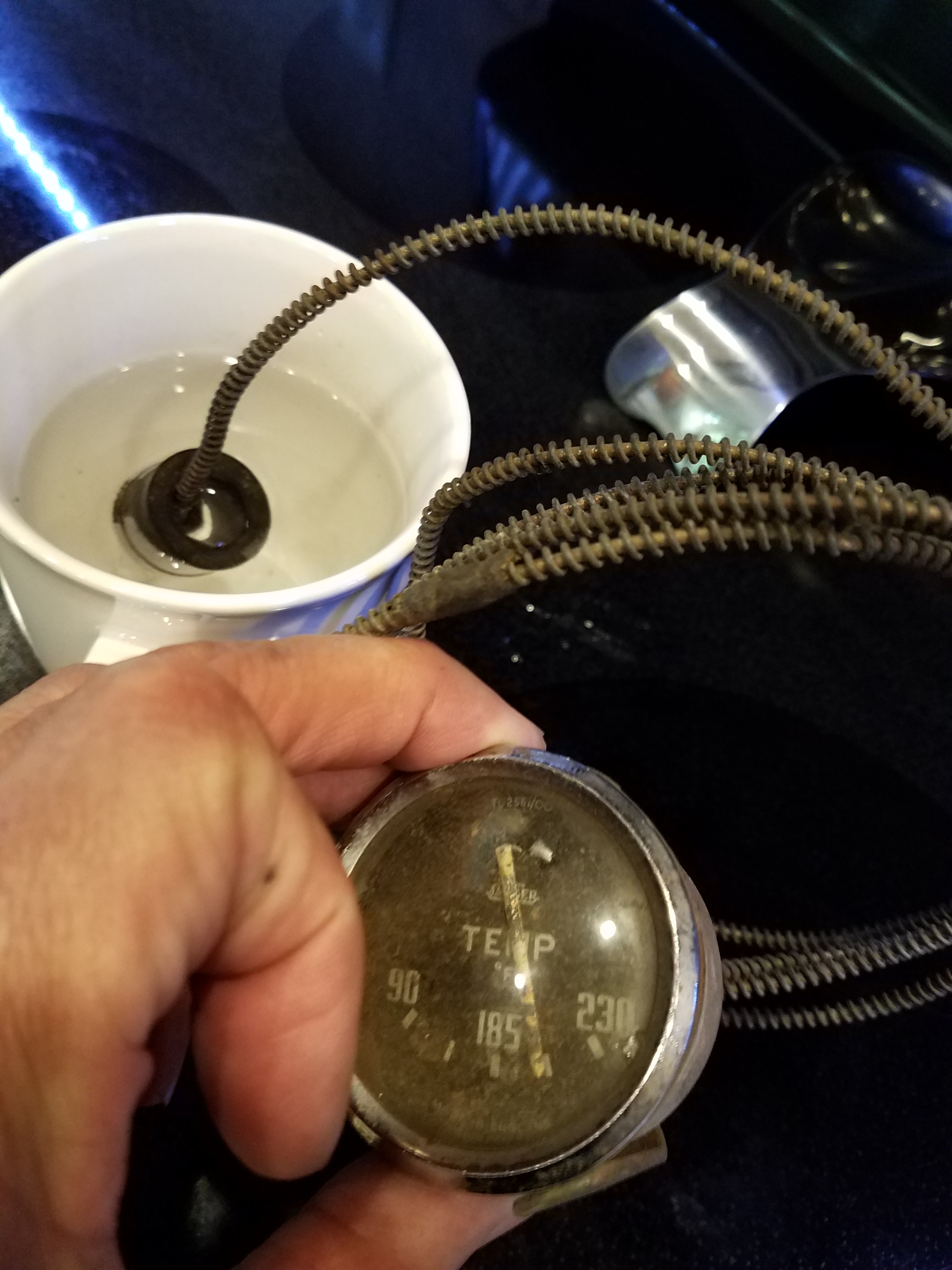

I nuked a coffee cup of water and stuck the bulb in the cup ---- The
needle moved!!!
Then, the tedious part --
1. I isolated the sender piping so it did not flop around - it was
already bread tied together in pretty good fashion.
2. I carefully removed the old o-ring under the bezel as these work like
glue and have given me a tough time separating the case from the bezel in
the past.
3. I pried ever so slightly on all the tabs on the back side of the
ring. I did this more to make sure that they were not stuck. I used no
oil or lubricant at this point.
4. I was then able to turn the case and bezel to separate.
5. I used a two liter bottle filled with water set up as a place to hold
the gauge and capillary tube while I worked so as not to flex the capillary
tube by repeated up and down placements.
6. I then used a tool I'd made in the past to unscrew the nut that holds
the innards to the case and carefully (the gauge face is not attached to
the needle/mechanism) pulled the innards out and slide the case down the
capillary tube. Holding my tongue right I slid the face over the needle
with out disturbing the needle.
7. Cleaning the gauge -- Do not use solvent! I've found it does a nice
job of smudging the lettering on gauges. -- I use water and a q tip and run
the face under the water while gently working the q tip across the face.
This gauge had some residue, so I used some mild soap with the q tip and
cleared that out.
8. After cleaning the lens, I saw a small chip in the glass. I think
most of it will be hidden behind the bezel.
9. I took an exacto knife and started scraping the needle - keeping it
still during this activity with case in my hand and two fingers stabilizing
the needle. Having the case in same hand as the fingers holding the needle
help to not move the needle during scraping and sanding. After Scraping
was complete, I sanded with 320 grit. Because I have it, I dipped a q
tip in Ospho-coat and ran it across the needle where rust was evident. An
hour later I used a wet q tip to remove any excess.
10. Dinner time -- after a few hours I went back out and painted the
needle with flat white paint (I may spring for fluorescent white needle
paint).

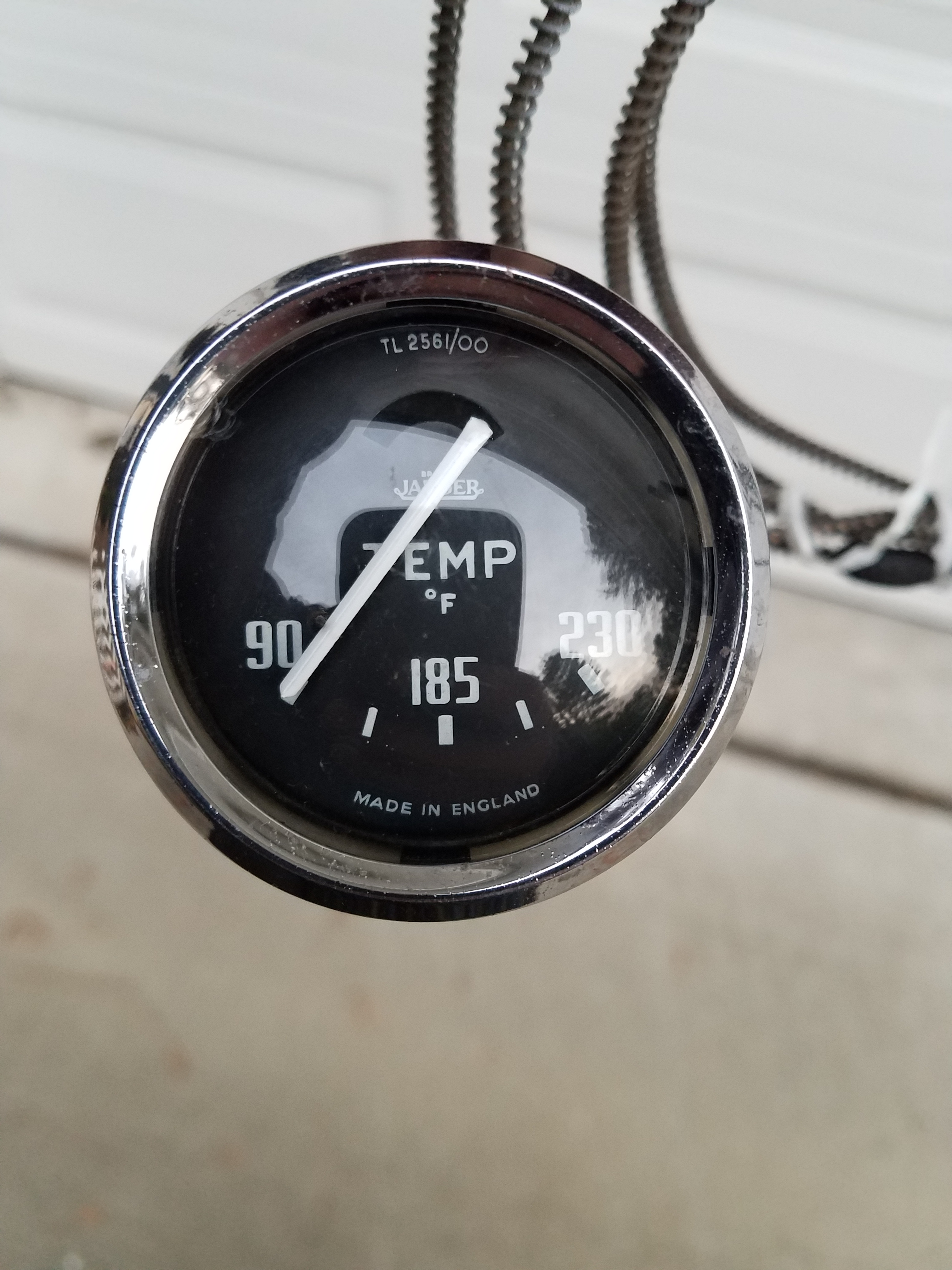

11. Next day --- I put the gauge back together and it looks really nice.
12. What do do with the capillary tube? IS there a decent looking
cadmium style paint out there?
https://www.walmart.com/ip/Krylon-MC202-Dupli-Color-Metalcast-Yellow-Anodized-11-Oz-Aerosol/39154119?wmlspartner=wlpa&selectedSellerId=1235&adid=22222222227026966689&wl0=&wl1=g&wl2=c&wl3=53852858231&wl4=aud-273067695102:pla-88029100391&wl5=9009703&wl6=&wl7=&wl8=&wl9=pla&wl10=112354589&wl11=online&wl12=39154119&wl13=&veh=sem
Anyways -- Thanks to all who responded - I'm in business but I'm afraid I'm
going to have to pull apart and clean all the rest of my gauges!!!
I've got two center gauge clusters (no gauges) for a TR3 w/crinkle paint
if anyone is in need.
Chris
