[Healeys] Noise on engaging the clutch revisited

[Michael Salter]

Yes Simon you can remove that plate and the rubber boot to get a better view of the release bearing and fork without risk of anything falling off.
If you remove the slave cylinder its all a lot easier.
Good luck installing the replacement conical spring on the shift lever, it's not easy.


________________________________
From: Healeys <healeys-bounces at autox.team.net> on behalf of Simon Lachlan via Healeys <healeys at autox.team.net>
Sent: Sunday, 16 August 2026 09:03:26
To: healeys at autox.team.net <healeys at autox.team.net>
Subject: [Healeys] Noise on engaging the clutch revisited

I have been away and am back home and hoping to deal with the previously discussed issue.

[cid:873E7AC0D58D16158C84CF264E91D61F43C23ED6 at 1]

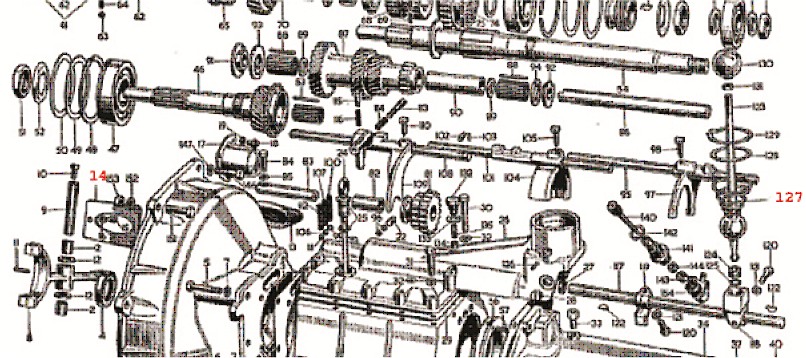

  1.  The process is somewhat stalled as I discovered that the spring, 127, was broken. How, when, why…I don’t know. I was not aware of it being broken.

Anyhow, I’ve ordered another and won’t proceed until it’s installed. Now, first question….could that spring being broken cause something to misalign and cause the noise?? Personally, I doubt it and am aware of the clutching at straws here.

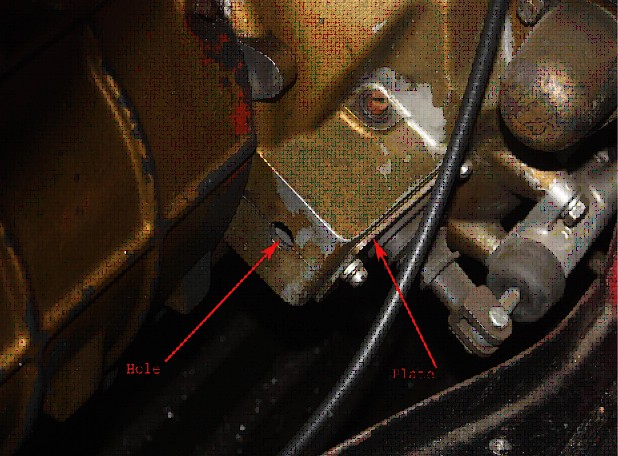

  1.  There is a convenient little hole near/under the slave cylinder. I was able to stick my endoscope in there and see a (very) little of what is going on. Second question….if one of the spring clips that locate the release bearing was not properly located, could the bearing operate at all?? Surely, it’s both on and all’s well or failure if one comes off??? Hard to tell, but the innermost clip may not have been on correctly. But, again, it would either be 100% on or 100% off in which case it would be lying on the bottom of the housing???

[cid:C765AF1B4A44812421CE0FCFCE023681C40B2054 at 1]

  1.  The plate, above and item 14 in the diagram. Can I remove it happy in the knowledge that I’ll be able to put it back on easily and without losing some vital little bit?? I seem to recall that the so-called “screws-retaining plate” can’t do anything other than thread into the casing?? Hence, they’re called “screws”?? Were I able to ease that away from the casing I could very probably get a better view on things by eye or by endoscope.

Thanks for your patience, Simon
