[Healeys] Offset or Bad Q.C.?

[WILLIAM B LAWRENCE]

Agreed, I got the information from Roger Moment.
________________________________
From: Michael Oritt <michael.oritt at gmail.com>
Sent: Tuesday, September 1, 2020 7:57 PM
To: WILLIAM B LAWRENCE <ynotink at msn.com>
Cc: David P via Healeys <healeys at autox.team.net>; David P <frogeye at porterscustom.com>
Subject: Re: [Healeys] Offset or Bad Q.C.?

Someone expressed skepticism that the holes in the sockets were designed to be offset in order to provide eccentric adjustment for the side screens.  I verified with Curt Arndt who is on the Concours committee that this was the purpose of the offset. If contemporary sockets are supplied with holes on-center it is possible that someone simply didn't grasp the subtlety of the design.  In any case all four of the sockets on my car are properly off-center.

Best--Michael Oritt

On Sun, Aug 30, 2020 at 2:25 PM WILLIAM B LAWRENCE via Healeys <healeys at autox.team.net<mailto:healeys at autox.team.net>> wrote:
Roland, Thanks for the information. I have some ideas on getting the parts done and hope they will turn out “jewel like”. “Nearly useless” actually describes the entire car, but some people spend much more on a few dabs of paint to hang on the wall. At least I can jump in it now and then and go for a bag or two of groceries...
________________________________
From: Healeys <healeys-bounces at autox.team.net<mailto:healeys-bounces at autox.team.net>> on behalf of David P via Healeys <healeys at autox.team.net<mailto:healeys at autox.team.net>>
Sent: Sunday, August 30, 2020 4:40 PM
To: healeys at autox.team.net<mailto:healeys at autox.team.net> <healeys at autox.team.net<mailto:healeys at autox.team.net>>
Subject: Re: [Healeys] Offset or Bad Q.C.?


oops, I got that wrong...


On 8/30/2020 6:44 AM, Michael Oritt via Healeys wrote:
Michael--

The holes are eccentric or off-center to provide slight adjustability in moving the curtain a bit forward or aft on the door as well as to allow for slightly different distances between the insert rods, etc.

Best--Michael Oritt

On Sat, Aug 29, 2020 at 5:58 PM Michael MacLean via Healeys <healeys at autox.team.net<mailto:healeys at autox.team.net>> wrote:

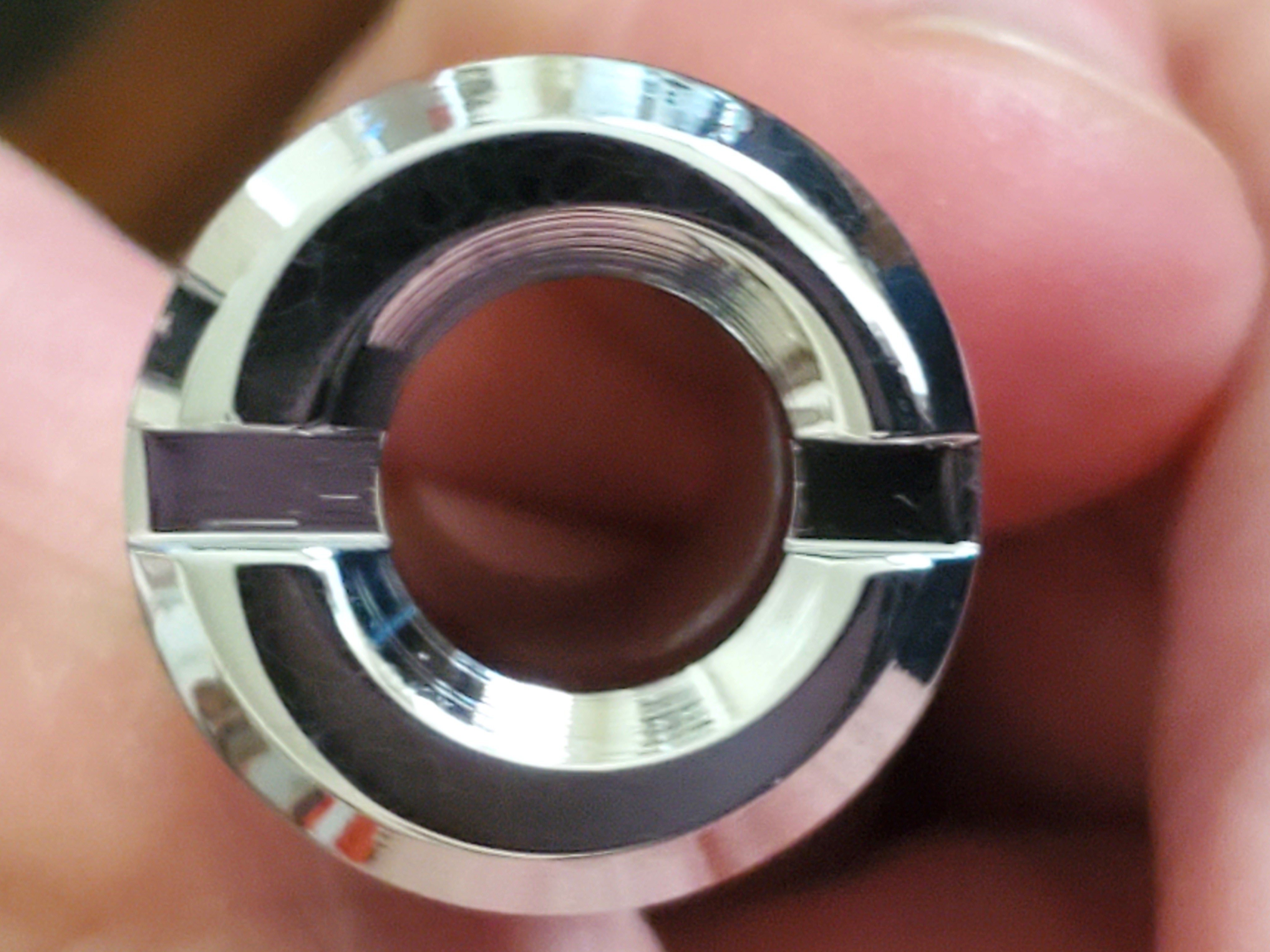

I am installing the side curtain sockets in the doors of my BN2.  These sockets are new from Moss.  Am I missing something?  The hole through the center of the socket is offset from the center.  Is it supposed to be like that and why?  Also, not exactly a flush fit to the door skin, but very tight in the threaded hole.  Kind of a bummer.
Mike MacLean
