[Fot] Collective wisdom

[Michael Moore]

I also put in a peacock on the top of the thermostat, just JB Welded it in, so I can bleed the air out of the system better

Have a Good Day
Mike

Michael T. Moore, CPA
3255 West 26th Street
Erie, PA 16506

Phone:  814-616-8652  ext 100
Fax:        888-865-5279
Email:    mmoore at mtmcpafirm.com<mailto:mmoore at mtmcpafirm.com>

This electronic mail message contains confidential and legally privileged information intended only for the use of the recipient. If the reader of this message is not the intended recipient, the reader is hereby notified that any dissemination, distribution, copying or other use of this message is strictly prohibited and is hereby instructed to notify the sender immediately by return email and destroy this copy of this message.



From: Fot <fot-bounces at autox.team.net> On Behalf Of Chuck Gee via Fot
Sent: Tuesday, January 20, 2026 3:27 PM
To: of Triumph Friends <fot at autox.team.net>
Subject: [Fot] Collective wisdom

Hello all,

In an effort to constantly improve the car, I’ve been looking at the cooling system on my TR4.  It currently has a header tank mounted to the firewall that functions as the high spot in the system.  This tank feeds the top of the radiator but doesn’t really circulate during operation.  I’ve been thinking of plumbing the feed off of the back of the head into the top of the tank so that it circulates.

Normally this rear head feed is plumbed to the back of the water pump.  In an exercise of overthinking, I’m not sure if there will be sufficient circulation since the tank is plumbed to the radiator.  Does it matter?  What is the collective wisdom?

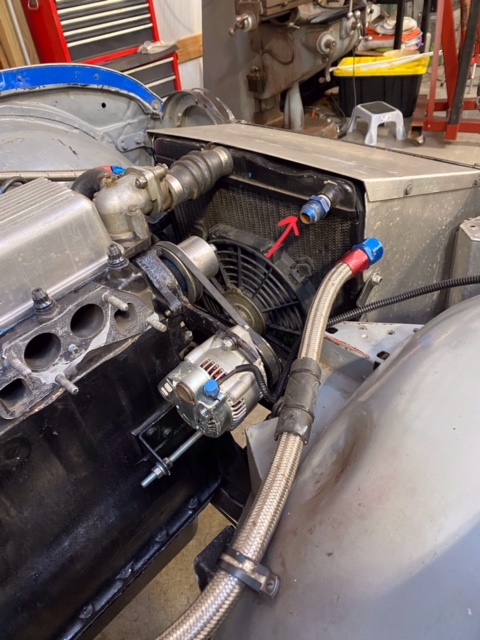

Here are some pictures to help illustrate.

Thanks,

Chuck
[cid:image001.jpg at 01DC8A28.F9E48420]
[cid:image002.jpg at 01DC8A28.F9E48420]
